详细介绍：

产品图片

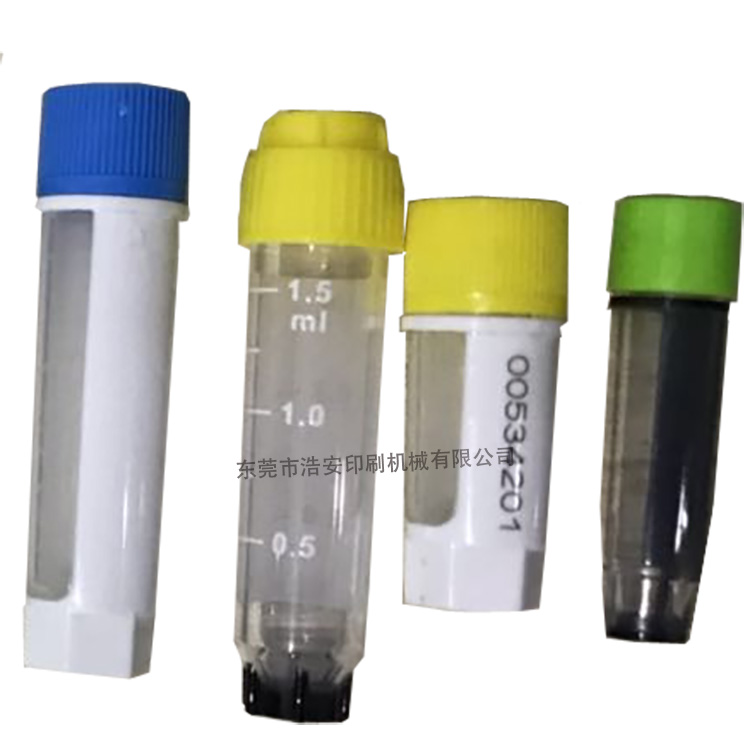

本机型专为（医疗行业产品印刷而定制如：离心管，病毒管，冻存管）双色全自动丝印机,印刷UV油墨.采用台湾高精密分割器,全机械式传动系统,机械式预定位系统，印刷速度快质量稳定可靠,调试方便快捷.

This model is specially designed for (medical industry product printing and customized such as: centrifugal tube, virus tube, frozen storage tube) two-color automatic wire printing machine, printing UV ink. Using Taiwan high-precision splitter, full mechanical transmission system, mechanical pre-positioning system, fast printing speed, quality is stable and reliable, convenient and quick debugging.

一：工作流程

人工把产品放输送带—自动掉头—自动上料—火焰处理—全自动印刷—UV固化—自动下料—经过输送带—经过自动旋盖系统—出料，完成整个过程。

Ⅰ: workflow

Manual put the product on the conveyor belt-automatic turn-automatic feeding-flame processing-automatic printing-UV curing-automatic feeding-through the conveyor belt-through the automatic spin cover system-feeding, complete the whole process.

二、机器配置：

1.7寸触摸屏欧姆龙（日本）

2.PLC欧姆龙（日本）

3.转盘运转由分割器驱动（台湾）

4.印刷机构全机械连动,加光电（德国）

5.左右滚珠丝杆(运行更平稳)（日本）

6.15轴管位座 ,紧密NSK轴承,进口硬轴组成（日本）

7.主传动由意大利摩多利减速机配电机，欧姆龙变频器控制（意利与日本）

8.产品上下料机机械是式运行，更平稳准确（日本）

9.本机的滚珠丝杆与导轨均采用日本THK品牌,精度更高,寿命更长（日本）

10.本机UV灯箱的高度调节由电机驱动,布置更合理,员工的操作更简便,更安全（美国）

11.气动SMC,使印刷品质更稳定. （日本SMC）

12.本机主要结构设计更合理,比国内现有机器作出重大优化,能实现稳定高效生产.

13.齿轮,齿条日本高质品牌

14.印刷定位机购由主电机传动,由凸轮驱动,完美与主机速独匹配,不用单独调节.(气缸的要配合主机速度调节打出,缩回角度,由于气源应响,解决存在撞机的可能)

Vi. Machine configuration:

The 1.7-inch touchscreen is Omron (Japan)

2.PLC Omron (Japan)

3. The turntable operation is driven by the splitter (Taiwan)

4. All machinery connection of printing organization, plus photoelectric (Germany)

5. Left and right ball silk bars (smoother operation) (Japan)

6.15 Shaft pipe seat, tight NSK bearing, imported hard shaft composition (Japan)

7. The main transmission is provided by Italian Moori reducer with motor and controlled by Omron inverter (Italy and Japan)

8. Product loading and unloading machine mechanical operation, more stable and accurate (Japan)

9. The local ball wire bars and guide rails are made of the Japanese THK brand, with higher accuracy and longer life (Japan)

10. The height adjustment of the local UV light box is driven by the motor, with more reasonable layout, easier operation and safer operation for employees (USA)

11. Pneumatic SMC makes the printing quality more stable. (Japan SMC)

12. The main structure design of the machine is more reasonable, compared with the existing domestic machines, can achieve stable and efficient production.

13. Gear, rack, Japanese high-quality brand

14. The printing positioning machine is purchased and driven by the main motor and driven by the cam, which perfectly matches the main engine speed alone without separate adjustment. (The cylinder should be matched with the host speed adjustment, retracted Angle, because the gas source should sound, to solve the possibility of a collider)

技术参数

technical parameter
