详细介绍：

产品图片

细节决定成败,我们为您想的更多,我们追求更好,更快!
Details determine success or failure, we think more for you, we pursue better, faster!

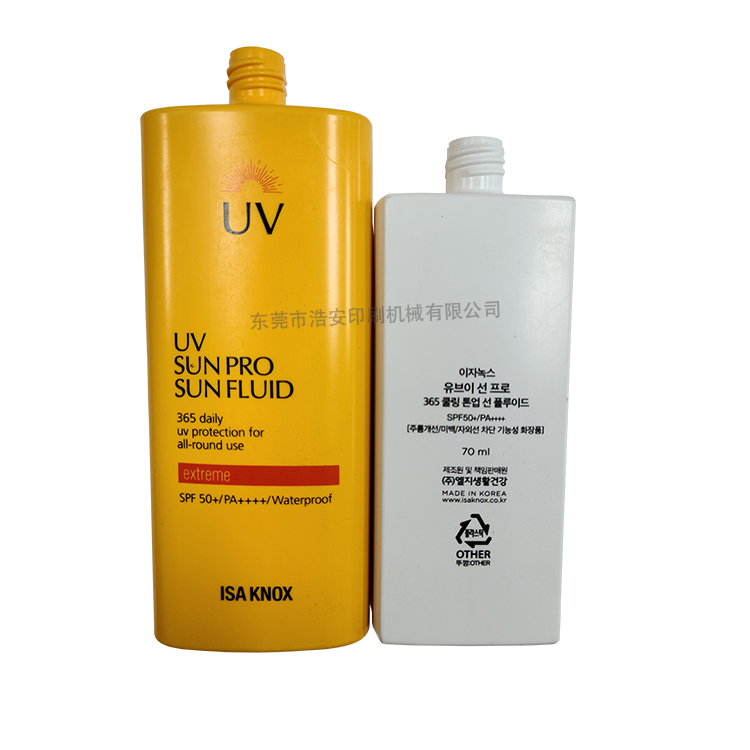

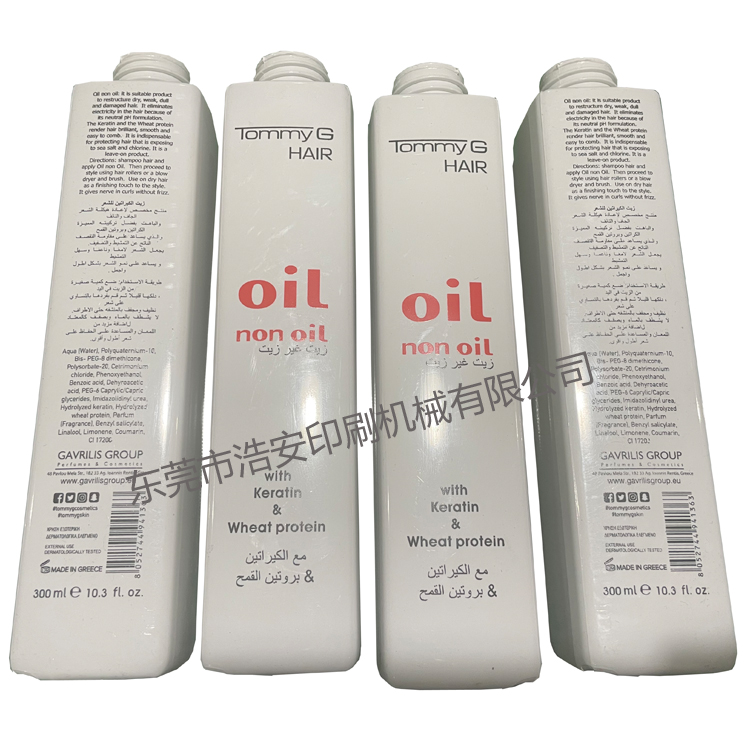

本机型为五工位视觉全伺服丝印机,针对玻璃瓶与塑料瓶，适用于圆柱形、方形、扁形、异型产品,自动上下料，火焰处理，伺服印刷，视觉定位印刷、UV固化，印刷速度快质量稳定可靠,调试方便快捷.
This model is a five-work station visual full servo silk printing machine, for glass bottles and plastic bottles, suitable for cylindrical, square, flat, different products, automatic loading and unloading, flame processing, servo printing, visual positioning printing, UV curing, printing speed, stable and reliable quality, convenient and fast debugging.
技术参数（technical parameter）
1. 7寸触摸屏欧姆龙（日本）
2. PLC 欧姆龙     （日本）
3. ABB伺服或汇川伺服（运动控制器）
4. 气动SMC与亚德客
5. 导轨台湾上银
6. 电器欧姆龙与施耐德
7. 输送带传送（间接式与连接式功能）
8. 机械手90°上料
9. 火焰处理
10. 视觉拍照定位套色
11. 预定位校正偏移功能
12. 自动印刷，网版伺服，旋转伺服
13. UV固化或LED固化（选用）
14. 印刷速度：1500-2400/H（视产品直径大小而定）
15. 印刷直径：φ15-100mm
16. 印刷高度：20-270mm
17. 电源：AC380V.三相50Hz
18. 总功率：6-9KW
19. 气源要求:5~6BAR
20. 机体尺寸：2650*2700*2100mm
1.7-inch Touch Screen Omron (Japan)
2. PLC, Omron (Japan)
3. ABB Servo or Huichuan Servo (motion controller)
4. Pneumatic SMC and Yadker
5. Guide rail, Taiwan, Shanghai silver
6. Electrical Appliances: Omron and Schneider
7. Conveyor conveyor belt transmission (indirect and connected function)
8. Mechaninist 90° feeding
9. Flame treatment
10. Visual photo-taking and positioning color set
11. Preset-bit correction offset function
12 Automatic printing, web plate servo, rotary servo
13.UV curing or LED curing (selected)
14. Printing speed: 1500-2400 / H (depending on the size of the product diameter)
15. Printing diameter: 15-100mm
16. Printing height: 20-270mm
17. Power supply: AC380V. Three-phase 50Hz
18. Total power: 6-9KW
19. Gas source requirements: 5~6BAR
20. Body size: 26,50 * 2,700 * 2,100 mm
