详细介绍：

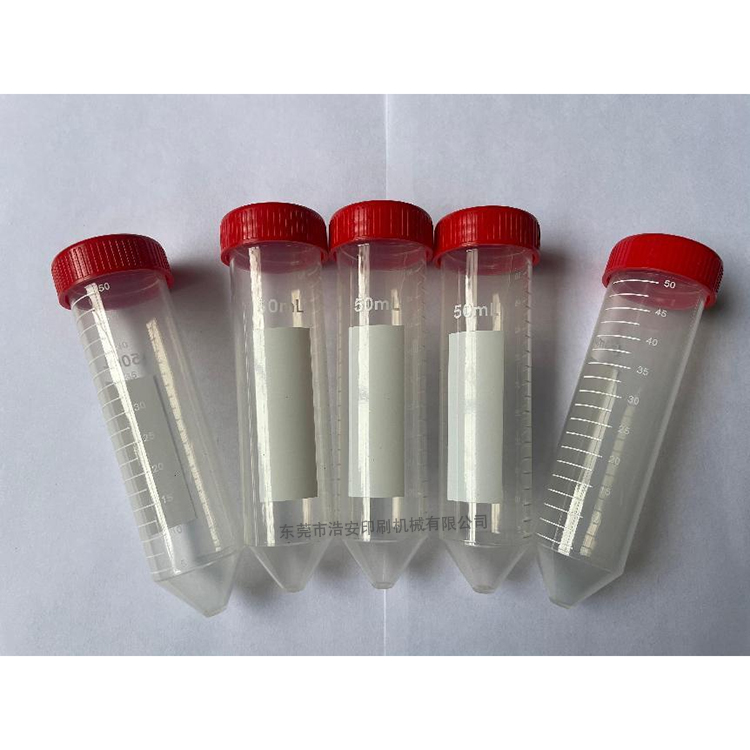

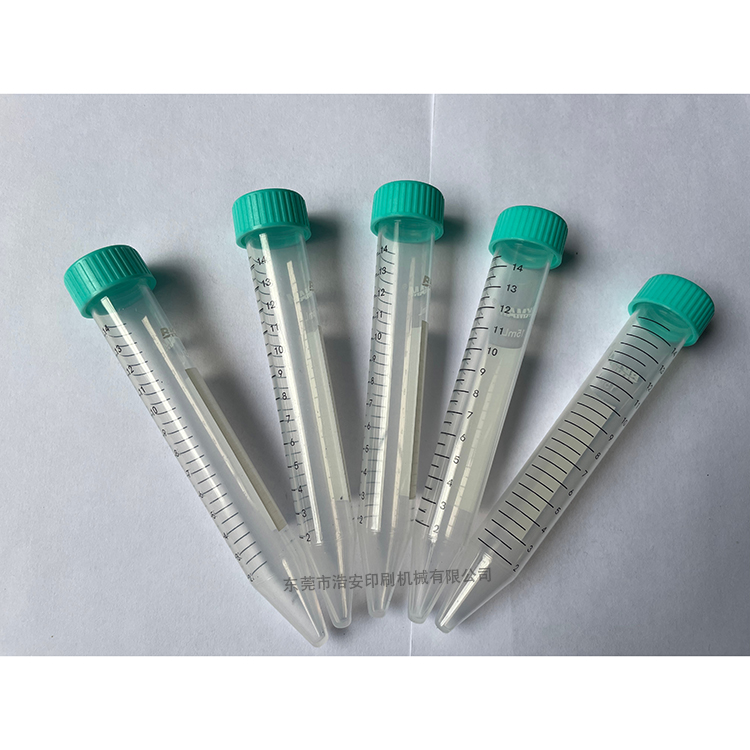

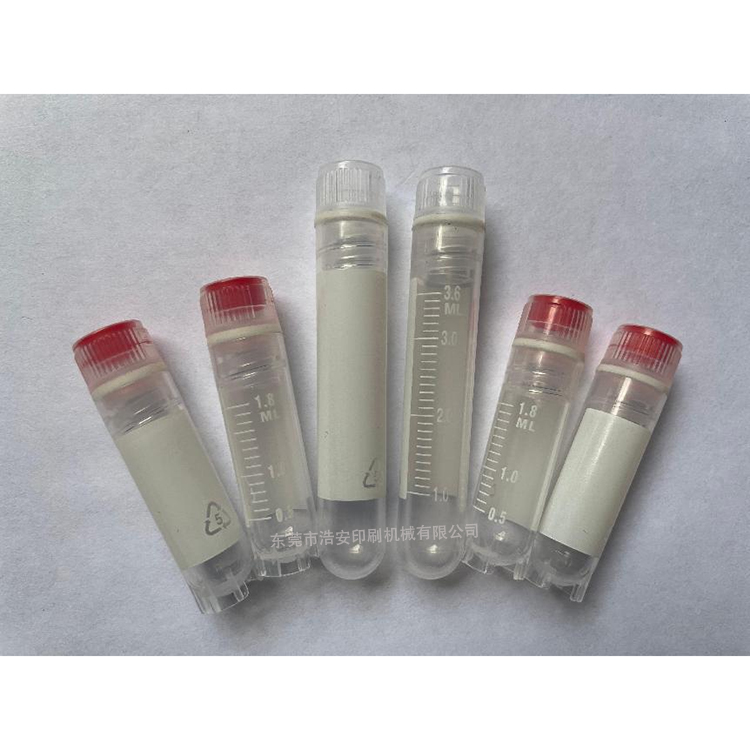

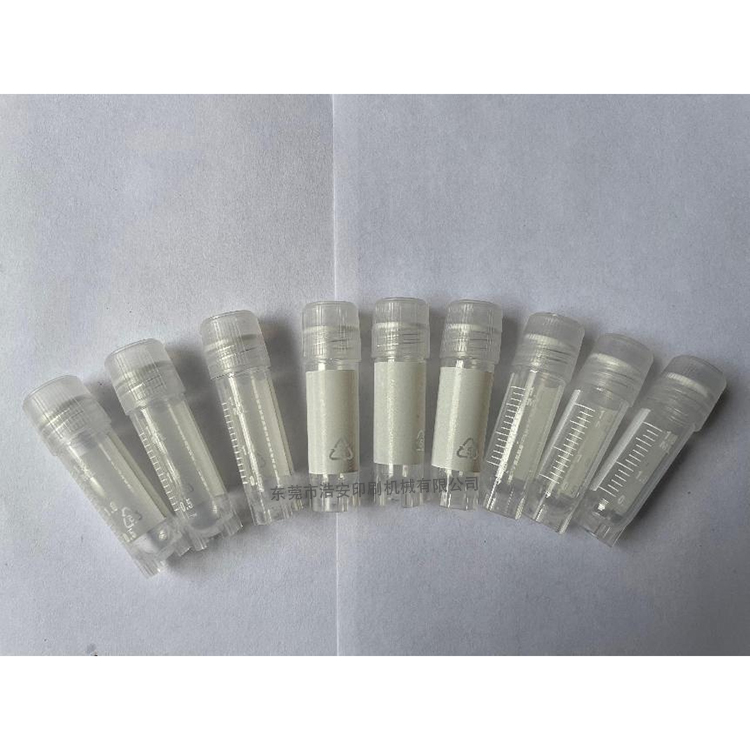

产品图片

一. 产品描述：

本机器能满足圆柱形、与其他异形容器的圆弧面印刷需求，专对冻存管、采样管、离心管等医疗容器有兼容性。本机通过可编程控制器（PLC）与高性能的触摸屏（Touch Screen）实现对整机工作的智能性操控。以先进的进口马达、变速装置及机械传动组成全新高速的传动系统，实现无极变速、同步传送、自动对位、无瓶不印等控制功能。

Ⅰ. product description:

The machine can meet the arc surface printing needs of cylindrical and other special-shaped containers, especially for frozen storage tubes, sampling tubes, centrifugal tubes and other medical containers with compatibility. The programmable controller (PLC) and high performance touch screen (machine) realize intelligent control of Touch Screen). With the advanced imported motor, variable speed device and mechanical transmission composed of a new high-speed transmission system, to achieve the infinite variable speed, synchronous transmission, automatic alignment, no bottle without printing and other control functions.

二.主要功能：

1. 可供自动上料机上料模式

2. 自动上料

3. 火焰表面处理系统（等离子表面处理系统）

4. 无级变速控制系统（变频器控制）

5. 自动预先对位系统

6. 无件不印刷系统（采用高性光电传感器， 透明和黑色都能可靠识别）

7. 紫外线uv固化系统

Ⅱ. major function:

1. feeding mode for automatic feeding machine

2. Automatic feeding

3. Flame surface treatment system (plasma surface treatment system)

4. Stepless variable speed control system (frequency converter control)

5. Automatic pre-alignment system

6. No printing system (high property photoelectric sensor, transparent and black)

7. UV uv curing system

三.主要配置：

1. 机器主电机:SITI（意大利）/减速机(台湾工字)

2. 可编程控制器(PLC)：松下或欧姆龙

3. 触摸屏：欧姆龙

4. 光电开关：KEYENCE（日本基恩士）/SICK(德国)

5. 按钮开关：IDEC(日本和泉)

6. 接触器： SCHNEIDER（施奈德）/Fujifilm（日本富士）

7. 继电器：OMRON（日本欧姆龙）

8. 变频器：OMRON（日本欧姆龙）

9. 紫外线固化系统：HONOVIA（美国汉诺威）

10. 气动元件：SMC（日本）

Ⅲ. major dispositions:

1. Main motor: SITI (Italy) / speed reducer (Taiwan I-word)

2. Programmable Controller (PLC): Panasonic or Omron

3. Touch screen: Omron

4. Photoelectric switch: KEYENCE (Key Shi, Japan) / SICK (Germany)

5. Button switch: IDEC (Japan)

6. Contactor: SCHNEIDER (Schneider) / Fujifilm (Fuji, Japan)

7. Relay: OMRON (Omron, Japan)

8. frequency converter: OMRON (Omron, Japan)

9. UV curing system: HONOVIA (Hannover, USA)

10. Pneumatic elements: SMC (Japan)

四.技术参数：

1. 圆形印刷直径：ф16mm~ф60mm

2. 圆形印刷高度：20mm~230mm

3. 最快印刷速度：印刷最快速度45-60Pcs/分钟左右，以实际产品为准

4. 电力要求：AC380V 3Phase 50Hz /60Hz

5. 额定功率： 主机4.6KW

6. 气压要求：5～8bar

7. 机器尺寸：4050(L)*1700(W)*2150(H)mm

8. 机械重量：约2000kg

Ⅳ. technical parameter:

1. Circular printing diameter: 16mm~ 60mm

2. Circular printing height: 20mm~230mm

3. The fastest printing speed: the fastest printing speed is about 45-60Pcs / minute, subject to the actual product

4. Power requirements: AC380V 3Phase 50Hz / 60Hz

5. Rated power: host 4.6KW host

6. Air pressure requirement: 5~8bar

7. Size of the machine: 4050 (L) * 1700 (W) * 2150 (H) mm

8. Mechanical weight: about 2,000 kg
