详细介绍：

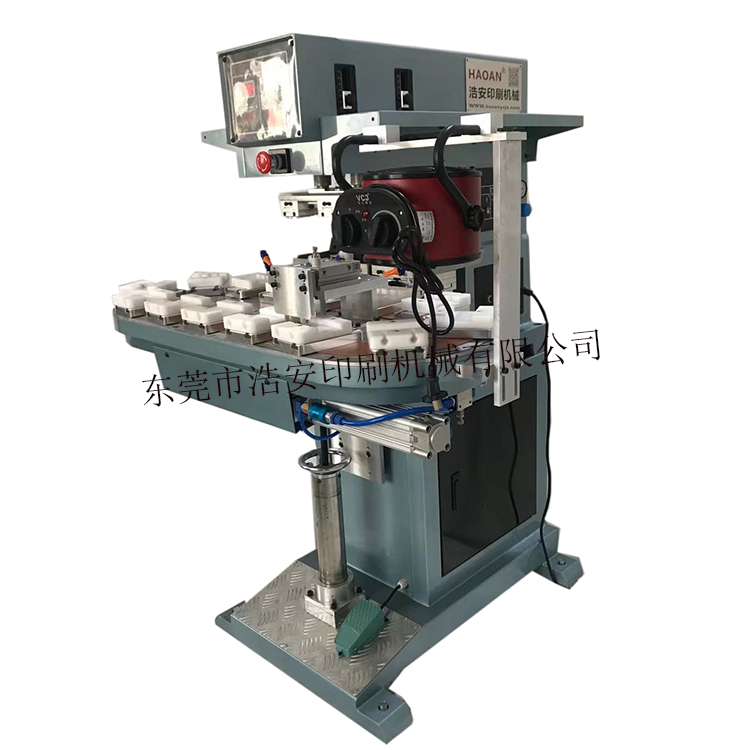

机器图片

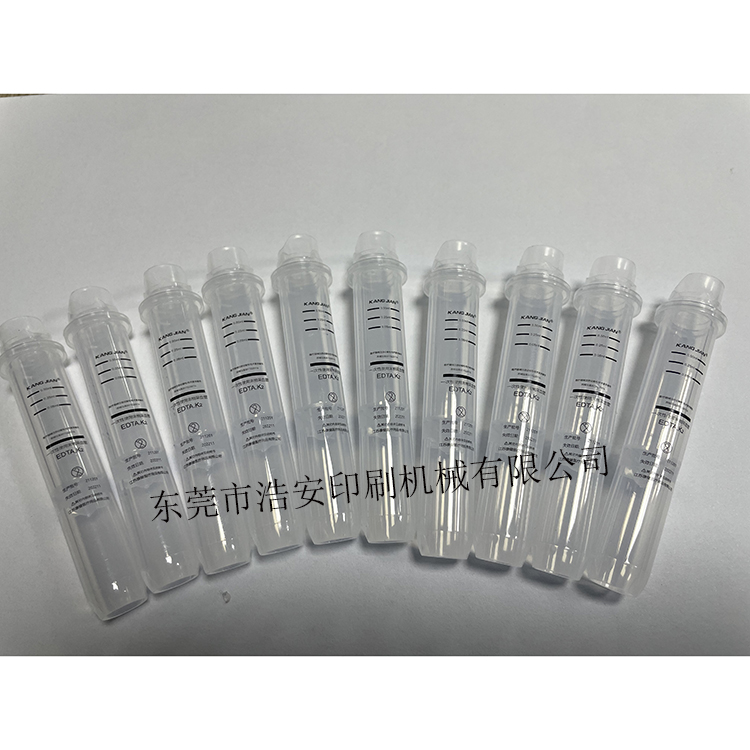

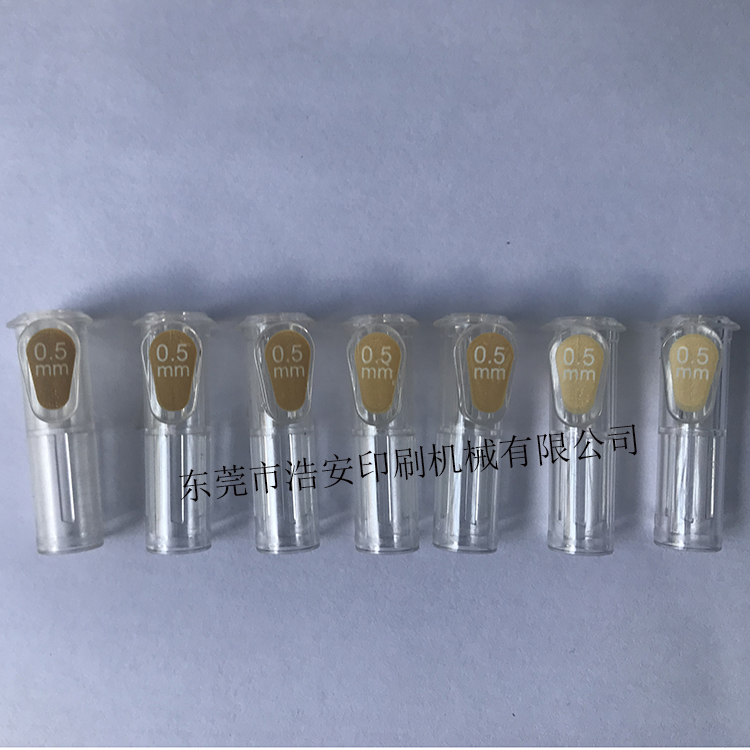

产品图片

一、产品特性（Product features）

此系列双色移印机采用油盆式供油系统、微电子键盘控制操作界面，独立的胶头上下行程与速度调控，配备X、Y、Z轴向及角度调节工作台。具有适用范围广、印刷效率高、操作简易等特点。能满足不同印刷环境（平面、曲面、不规则面）图文印刷的要求。广泛适用于电子、电器、五金、塑胶、玩具、文具等行业。

This series of two-color pad printing machine adopts oil basin type oil supply system, microelectronic keyboard control operation interface, independent glue head down stroke and speed control, equipped with X, Y, Z axis and Angle adjustment workbench.With a wide range of applications, high printing efficiency, easy to operate and so on.Can meet different printing environment (plane, surface, irregular surface) graphic printing requirements.Widely used in electronics, electrical appliances, hardware, plastic, toys, stationery and other industries.

二、工艺（process）

机架使用加厚方通，结实，表面烤漆，光亮。铸铝机壳 ，配件CNC加工及氧化，美观。

The rack is made of thickened, solid, lacquered surface and bright.Casting aluminum chassis, accessories CNC processing and oxidation, beautiful.

三、供油系统介绍（Introduction of oil supply system）

油盆式供油系统.特点是：印刷面积大，安装拆卸方便，操作上更灵活，直接将调好的油墨倒入油盆内即可印刷

Oil basin type oil supply system. Features: large printing area, easy installation and disassembly, more flexible operation, printing ink can be directly poured into the oil basin.

四、双色转带式工作台主体部件采用铸铝合金制造，坚固耐用、研磨级滑轨与创新定位设计确保多色、套色印刷精准，德国品质精密气动元件提供强大动力。特殊推送系统与减震装置保证运行稳定可靠。特点，印刷平稳、准确、印刷效率高

The main components of the two-color swivelling belt table are made of diecasting aluminum alloy, which is strong and durable, the grinding grade slide track and the innovative positioning design ensure the accuracy of multi-color and color printing, and the German quality precision pneumatic components provide strong power.The special push system and shock absorption device ensure stable and reliable operation.Characteristics, printing smooth, accurate, high printing efficiency.

五、技术参数（Technical parameters）

钢板尺寸  Plate Size（mm）：                                100*100

印刷面积Printing area（mm):                                    60*60

工件高度max print(mm):                                            180

印刷速度 print speed （hour）：                             3000pcs

电源及功率 power（w）：                       110vor220v 50/60HZ 2KW 6Bar

机身尺寸Dimension(mm):                                   860*710*1400

重量weight（kg）:                                                    166
