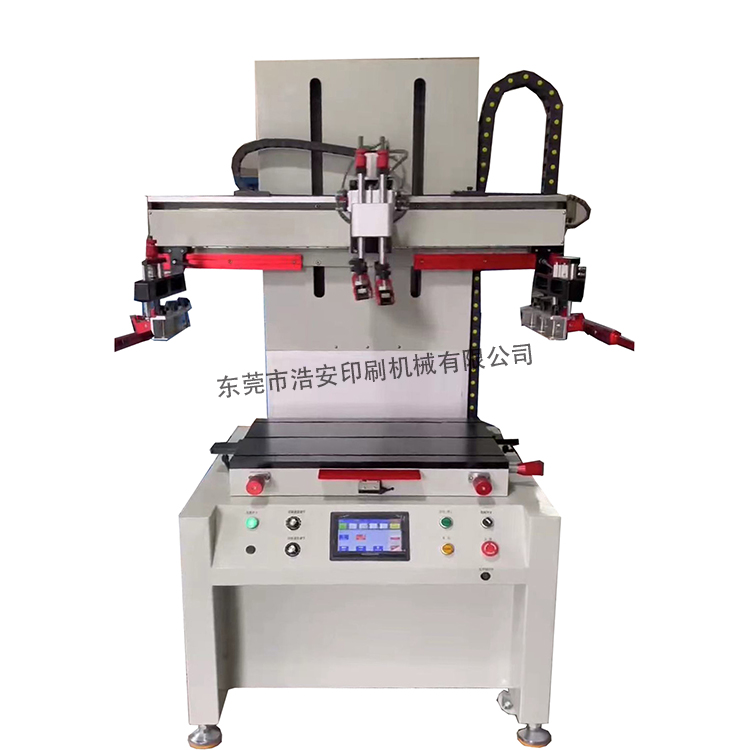

机器图片

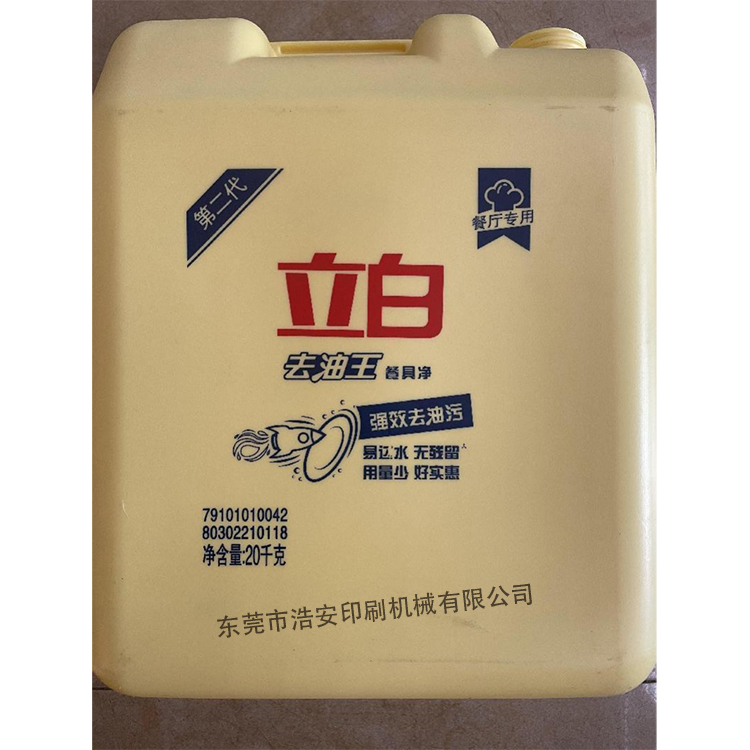

产品图片

产  品  简  介

Product profile

HA-800加高平面丝网印刷机是一种通用型平面丝印机。能广泛应用于日常用品、玩具、电子、电器、塑料、皮革、金属、玻璃、轻工业及食品包装等各种行业中。

HA-800 high flat screen printer is a general purpose flat screen printing machine. Can be widely used in daily products, toys, electronics, electrical appliances, plastic, leather, metal, glass, light industry and food packaging and other industries.

一、此精密型平面丝印机具有以下特点：

1、 各位置均为全电动控制，电眼感应，位置准，性能优。

2、 工作台在左右、前后、角度方面都能微调，且定位准确而稳定。

3、 自动起头功能，拆洗网框更加方便.

4、 左右运动采用电动控制，变频速度可调，步进电机驱动，同步带传动，运动轻巧平稳，提高印刷质量。

5、 网版上下采用电机驱动，上银线性导轨传动，精确控制上下行程，运行快滑平稳。

6、 自动起网功能，印刷质量更高。

7、 性能稳定，整台机器采用7寸控制屏。

8、 台面T型槽

9、 根据客户需要，预置两个功能程序，单周期印刷和全自功印刷。

10、 采用最新电气元件，动力畅顺强劲，经久耐用。

11、 操作面板采用灵敏轻触制，可直接选用丝印功能反应敏捷使用方便。

I. This precision plane screen printing machine has the following characteristics:

1. All positions are fully electric control, electric eye induction, accurate position, excellent performance.

2. The bench can be fine-tuned in left and right, front and rear, Angle, and the positioning is accurate and stable.

3. Automatic head start function, remove and wash the net box is more convenient.

4. Left and right movement using electric control, variable frequency speed can be adjusted, stepper motor drive, synchronous belt transmission, light and smooth movement, improve the printing quality.

5. The network version adopts the motor drive, silver linear rail drive, accurately control the up and down stroke, fast and smooth operation.

6. Automatic network starting function, higher printing quality.

7. Performance is stable, and the whole machine uses a 7-inch control screen.

8. Mesa T groove

9. According to the customer needs, preset two functional procedures, single-cycle printing and full self-service printing.

10. With the latest electrical components, strong power and durability.

11. The operation panel is sensitive light touch, can directly choose the screen function agile response easy to use.

二、 技术参数：

  1、印刷顔色                                   1色

  2、单周期                            可以

  3、持续运动                                   可以

  4、项目计数                                   可以

  5、速度调节                                   可以

  6、各部位延时                                  可以

  7、印刷速度                               800-1000次/小时

  8、工作台面积                              350*800mm

  9、最大印刷面积                              200mm*800mm

  10、工件高度                          5mm-380mm

  11、网框上落行程                        200mm

  12、刮刀左右行程                              800mm

  13、网框升降可调                              150mm

  14、自动起网行程                               20mm

  15、刮刀、油刮上下行程                           25mm

  16、驱动                                    电机

  17、人机界面                                 七寸

  18、控制电压                         12VDC

  19、电源电压                             220VAC  50/60Hz

  20、连接负荷                                 1720W

  21、气动供应                                 6bar

  22、机身外形尺寸                     1000mm X 1300mm X 1700mm

  23、重量                             约280Kg

Ⅱ.technical parameter:

1. Printing color is 1 color

2. Single cycle can be

3. Continuous exercise is ok

4. Item count is ok

5. Speed regulation can be done

6. The delay of each part can be achieved

7. Printing speed is 800-1000 times / hour

8. The workbench area is 350 * 800mm

9. The maximum printing area is 200mm * 800mm

10. The height of the workpiece is 5mm-380mm

11. The upper landing trip of the network frame is 200mm

12. The scraper trip is 800mm

13. The net frame can be adjustable 150mm

14. Automatic network starting trip is 20mm

15, scraper, oil scraping up and down 25mm

16. Drive the electric motor

Human-machine interface is seven inches

18. Control voltage is 12VDC

19. Power supply voltage is 220VAC 50 / 60Hz

20. Connecting load is 1720W

21. Pneumatic supply is 6bar

22. The body shape size is 1000mm X 1300mm X 1700mm

23. Weight is about 280Kg

三、机器操作安全性能：

   HA-800加高平面丝网印刷机符合最新的工程式样，如按要求使用绝对值得信赖。

   机器左右方向装有安全光栅，运行过程中遮挡安全光栅，则机器马上停止并回到起始位置。

   机器装有紧急开关：当遇到紧急事情时按下紧急开关，则机器马上断电。回到起始位置，当事情处理好后扭出紧急开关，便可以安全启动恢复正常。

III. Safety performance of machine operation:

The HA-800 plus high-flat screen printing press meets the latest engineering style and is absolutely reliable if used as required.

The machine is equipped with the safety gate during operation, then the machine stops and returns to the starting position.

The machine is equipped with an emergency switch: when the emergency to press the emergency switch, the machine immediately power off. Back to the starting position, when the emergency switch, you can safely start to normal.

 四、注意事项：

 （1）、当机器需要移动或修理时，必须将电源和气源切断。

 （2）、当调整或清洗油刮时，请按步骤操作。

 （3）、增强防火意识，配备消防器材。

IV. Precautions:

(1) When the machine needs to be moved or repaired, the power supply and gas source must be cut off.

(2) When adjusting or cleaning the oil scrape, please follow the steps.

(3) Enhance fire prevention awareness and equip them with fire fighting equipment.
