详细介绍：

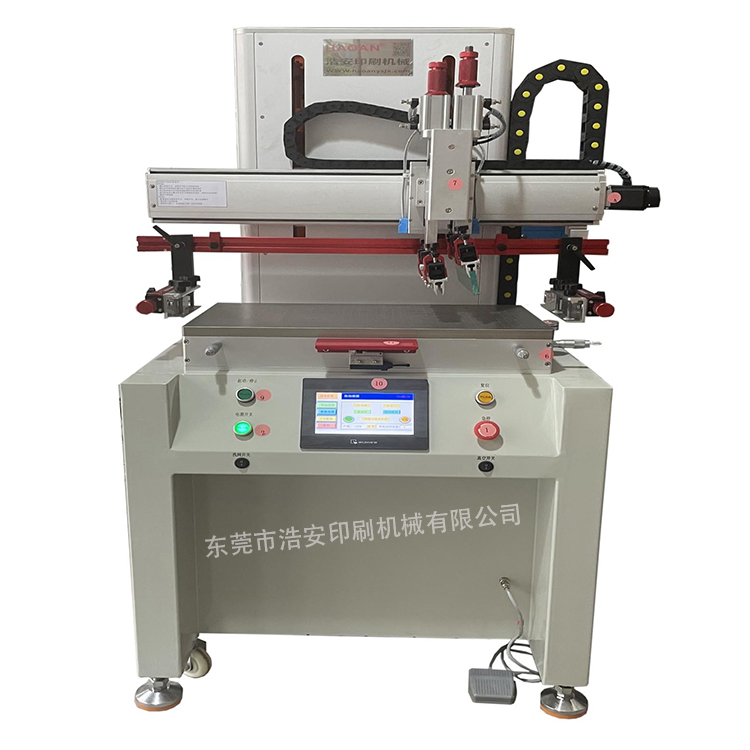

机器图片

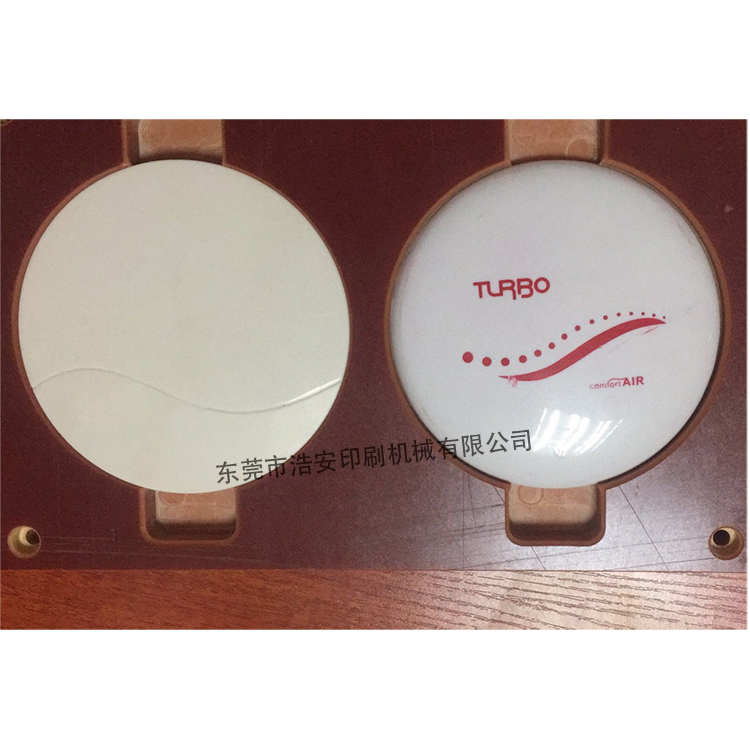

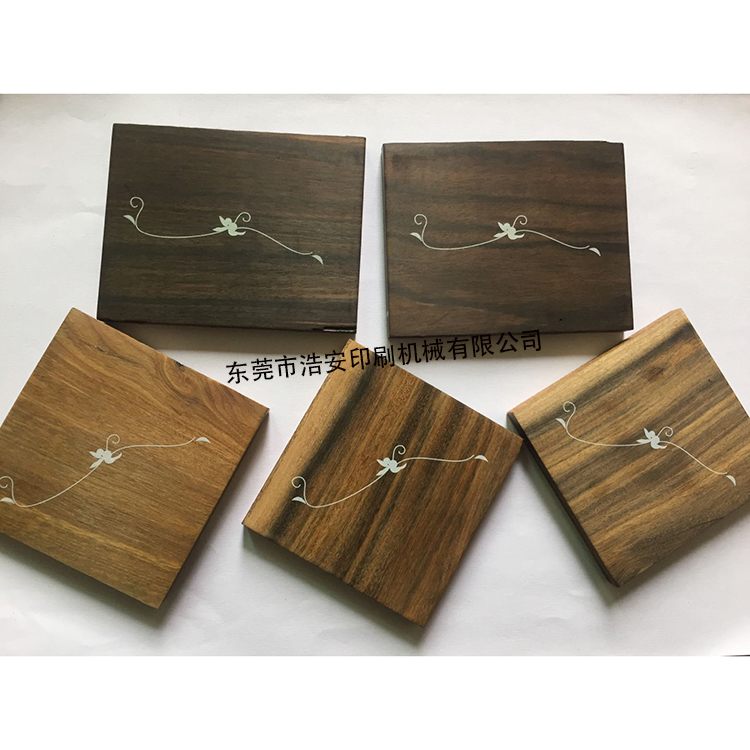

产品图片

产  品  简  介

HA-500SPE平面丝网印刷机是一种通用型平面丝印机。能广泛应用于日常用品、玩具、电子、电器、塑料、皮革、金属、玻璃、轻工业及食品包装等各种行业中。

Product profile

The HA-500SPE flat screen printer is a general-purpose flat screen printing machine. Can be widely used in daily products, toys, electronics, electrical appliances, plastic, leather, metal, glass, light industry and food packaging and other industries.

一、此精密型平面丝印机具有以下特点：

1、 各位置均为伺服电机控制，电眼感应，位置准，性能优。

2、 工作台在左右、前后、角度方面都能微调，且定位准确而稳定。

3、 自动起头功能，拆洗网框更加方便.

4、 刮刀左右运动采用伺服控制，导轨结构，运动轻巧平稳，提高印刷质量。

5、 网框升降采用伺服控制，导轨运动结构，精度高，运动平稳顺畅。

6、 自动起网功能，印刷质量更高。

7、 刮刀左右用步进电机和同步带传动，运行更加稳定。

8、 自动吸气功能，适用薄型工件印刷。

9、 整台机器采用:选配1标配单片机控制，选配2（PLC控制与7寸屏）。

10、 根据客户需要，预置两个功能程序，单周期印刷和全自功印刷。

11、 采用日本SMC公司最新电气元件，动力畅顺强劲，经久耐用。

12、 特殊减震装置，机器运作非常平稳；

13、 操作面板采用灵敏轻触制，可直接选用丝印功能反应敏捷使用方便。

I. This precision plane screen printing machine has the following characteristics:

1. All position is controlled by servo motor, electric eye induction, accurate position and excellent performance.

2. The workbench can be fine-tuned in terms of left and right, front and rear, and Angle, and the positioning is accurate and stable.

3. Automatic head start function makes it more convenient to remove and wash the net box.

4. The left and right motion of the scraper is servo controlled, guide rail structure, light and smooth movement, and improve the printing quality.

5. The network frame lifting is controlled by servo control, and the guide rail movement structure has high accuracy and smooth movement.

6. Automatic network starting function, with higher printing quality.

7. The scraper uses the stepping motor and the synchronous belt drive to run more stable.

8. Automatic suction function, suitable for thin workpiece printing.

9. The whole machine adopts: matching 1 standard microcontroller control, matching 2 (PLC control and 7-inch screen).

10. According to customer needs, preset two functional procedures, single-cycle printing and full self-service printing.

11. Adopt the latest electrical components of SMC Company of Japan, smooth and strong power, durable.

12, special shock absorption device, the machine operation is very stable;

13. The operation panel is made of sensitive and light touch, which is directly selected and easy to use.

二、技术参数：

  1、印刷顔色                                   1色

  2、单周期                            可以

  3、持续运动                                   可以

  4、项目计数                                   可以

  5、速度调节                                   可以

  6、各部位延时                                  可以

  7、印刷速度                        800-1000次/小时

  8、工作台面积                               600mmX800mm

  9、最大印刷面积                              500mmX700mm

  10、工件高度                         0mm-180mm

  11、网框上落行程                               200mm

  12、刮刀左右行程                               700mm

  13、网框升降可调                               150mm

  14、自动起网行程                               20mm

  15、刮刀、油刮上下行程                           25mm

  16、驱动                                     电机

  17、选配控制系统                             单片机/PLC

 18、选配操作系统                             7寸屏/触摸屏

  19、控制电压                         12VDC

  20、电源电压                              220VAC  50/60Hz

  21、连接负荷                         2000W

  22、气动供应                         6bar

  23、机身外形尺寸                        1200mm X 1400mm X 1720mm

  24、重量                          约400Kg

II. Technical Parameters:

1. Printing color is 1 color

2. Single cycle can be

3. Continuous exercise is ok

4. Item count is ok

5. Speed regulation can be done

6. The delay of each part can be achieved

7. Printing speed is 800-1000 times / hour

8. The workbench area is 600mmX800mm

9. Maximum printing area is 500mmX700mm

10. The workpiece height is 0mm-180mm

11. The upper landing trip of the network frame is 200mm

12. The scraper trip is 700mm

13. The net frame can be adjustable 150mm

14. Automatic network starting trip is 20mm

15, scraper, oil scraping up and down travel 25mm

16. Drive the electric motor

17. Select the control system microcontroller / PLC

18. Optional OS 7-inch screen / touch screen

19. Control voltage is 12VDC

20. Power supply voltage is 220VAC 50 / 60Hz

21. Connecting load is 2000W

22. Pneumatic supply is 6bar

23. The body shape size is 1200mm X 1400mm X 1720mm

24. Weight is about 400Kg

三、机器操作安全性能：

HA-500SPE平面丝网印刷机符合最新的工程式样，如按要求使用绝对值得信赖。

机器左右方向装有安全光栅，运行过程中遮挡安全光栅，则机器马上停止并回到起始位置。

机器装有紧急开关：当遇到紧急事情时按下紧急开关，则机器马上断电。回到起始位置，当事情处理好后扭出紧急开关，便可以安全启动恢复正常。

III. Safety Performance of machine operation:

The HA-500SPE flat screen printing press meets the latest engineering pattern and is absolutely trustworthy used as required.

The machine is equipped with the safety grille during operation, then the machine immediately stops and returns to the starting position.

The machine is equipped with an emergency switch: when the emergency to press the emergency switch, the machine immediately power off. Back to the starting position, when the emergency switch, you can safely start to normal.

 四、注意事项：

 （1）、当机器需要移动或修理时，必须将电源和气源切断。

 （2）、当调整或清洗油刮时，请按步骤操作。

 （3）、增强防火意识，配备消防器材。

IV. Precautions:

(1) When the machine needs to be moved or repaired, the power supply and gas source must be cut off.

(2) When adjusting or cleaning the oil scrape, please follow the steps.

(3) Enhance fire prevention awareness and equip them with fire fighting equipment.
