案例名称：HA-400SR-4片材四工位丝印机
更新时间：2022.09.02
出品单位：

更多产品图片：

详细介绍：

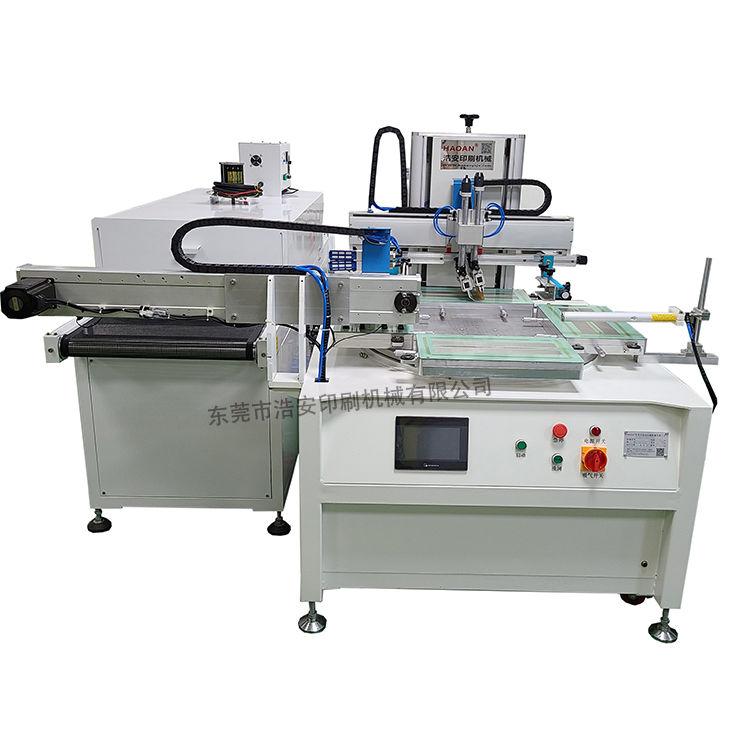

机器图片

产品图片

该丝印机采用先进的PLC控制，人机界面数字化操作。转盘采凸轮分割器精密驱动，重复精度高，定位精准，速度快。自动下料机械手臂采用步进电机或伺服电机配合精密线性导轨驱动，速度快，稳定性好。此机提供多种功能设定，达到作业数据化、标准化、人性化之完善要求。创新的结构设计，配合顶级伺服传动及导向系统，运行快速，稳定滑顺，定位精准，节省能源，自动下料，节省人工，保证印刷质量。

Overall appearance

The wire printing machine adopts advanced PLC control and man-machine interface digital operation. Turtable cam splitter precision drive, high repetition accuracy, accurate positioning, fast speed. Automatic feeding mechanical arm using stepper motor or servo motor with precision linear guide rail drive, fast speed, good stability. This machine provides a variety of function Settings, to meet the operation data, standardization, humanized perfect requirements. Innovative structural design, with top servo transmission and guidance system, fast operation, stable and smooth, accurate positioning, energy saving, automatic feeding, save labor saving, ensure printing quality.

二、主要参数 key parameter

NO	项目 project	参数 parameter
1	最大印刷面积 Maximum printed area	280mmx380mm
2	最大网板尺寸 Maximum mesh board size	350mmx550mm
3	套印精度 Inset accuracy	±0.03mm
4	工件高度 Creature height	0~80mm
5	工作台面面积 Working surface area	300mmx400mm
6	转盘直径 Turntable diameter	Ø700mm
7	转盘驱动 Turntable drive	台湾东元 Taiwan dongyuan
8	凸轮分割器 Cam splitter	台湾德士 Taiwan's Dex
9	网版升降驱动 Network version lift drive	伺服与气缸选配 Servo and cylinder are optional
10	印刷座架驱动 Printed seat drive	步进电机或伺服驱动（选配） Stepper motor or servo drive (optional)
11	机械手左右驱动 Drive left and right	步进电机或伺服驱动（选配） Stepper motor or servo drive (optional)
12	导向导轨 Guide rail	HIWIN
13	夹料机械手上下驱动 The sandwich manipulator drives up and down	SMC
14	夹料机械手升降滑动 Clip manipulator lift and slide	SMC
15	刮刀气缸 Scrapper cylinder	SMC
16	墨刀气缸 Ink knife cylinder	SMC
17	换气气缸 Air cylinder	SMC
18	工作气压Mpa working air pressure Mpa	0.4~0.6Mpa
19	工作周期 work cycle	3S左右
20	定位方式 location mode	自动下料(配量身定制的管位) Automatic feeding (tailored pipe position)
21	机台结构 Machine structure	组合而成 Combination
22	产能 capacity	约2200PCS/小时 About 2,200 P C S / h
23	机器重量 machine weight	550Kg
24	电源 electrical source	220V 50/60Hz1.5KW

三、结构说明 structure specification

1、丝印机 Screen printing machine

2、主要性能 main performance

1) 垂直升降设计，采用精密导轨导向快速稳静升降，保养简便，耐长时操作，稳定精度高。

2) 创新结构，强固质轻，节省能源。

3) 左右印刷采用步进电机或伺服电机传动设计，精密导轨导向，运行快速，稳定滑顺，定位精准

4) 换版/装框/定位简易快速，按键式操作大幅减少装夹时间、提升产能。

5) 按键式操作，提供多种功能设定，达到作业数据化、标准化、人性化之完善要求。

6) 设有急停开关、安全复归及自动侦错警示，安全防护周全。

7) 标配烤箱，更快固化油墨，加快效率

1. Vertical lifting design, the use of precision guide rail guide fast stable and static lifting, simple maintenance, long endurance operation, high stability accuracy.

2. Innovation structure, strong, solid quality and light, energy saving.

3. Left and right printing using stepping motor or servo motor transmission design, precise guide rail guidance, fast operation, stable and smooth, accurate positioning

4. Change / frame / positioning is simple and fast, push-button operation greatly reduces the loading time, improve production capacity.

5. Push-button operation, to provide a variety of function Settings, to achieve the operation data, standardization, humanized perfect requirements.

6. With emergency stop switch, safety return and automatic error detection warning, comprehensive safety protection.

7. Standard oven, faster curing of ink, faster efficiency
