详细介绍：

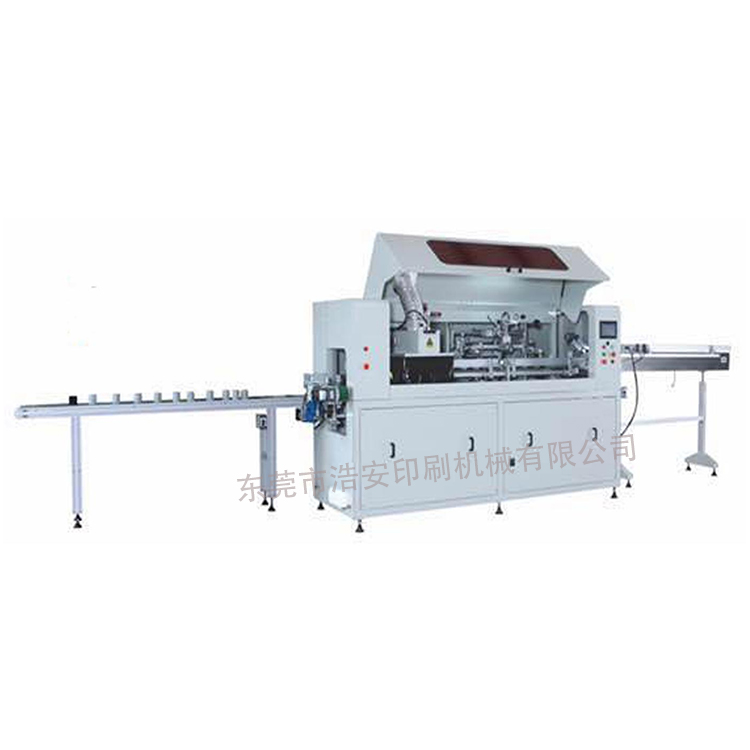

机器图片

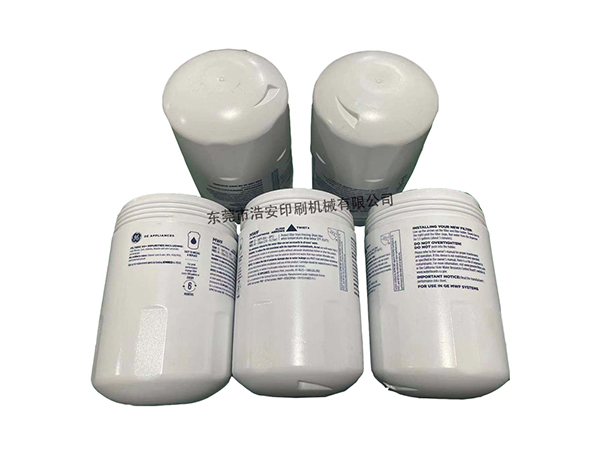

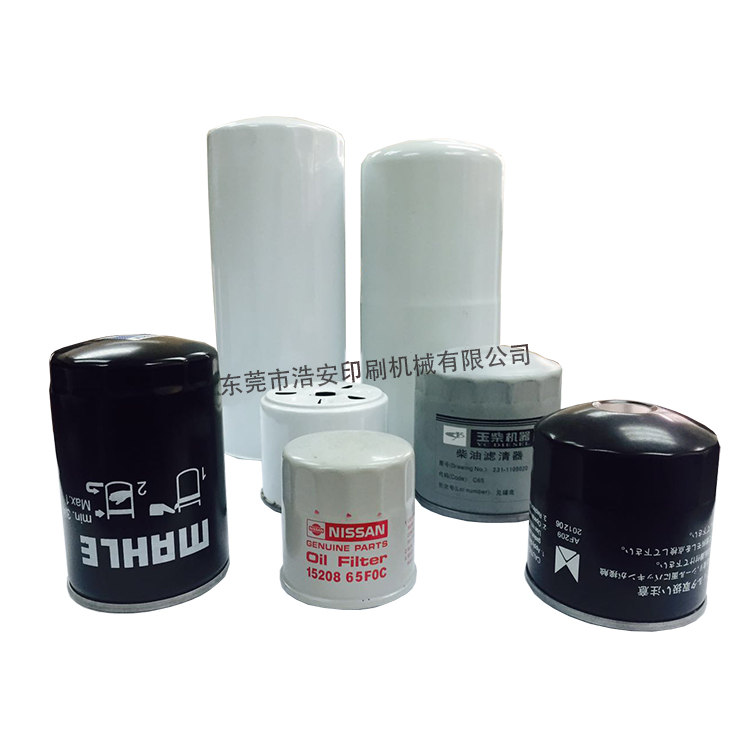

产品图片

技术参数及配置 Technical parameters and configuration

（一）、产品描述：

本机器能满足圆柱形、椭圆柱形印刷需求，对滤芯器、塑胶、玻璃、金属等容器均有兼容性。本机通过可编程控制器（PLC）与高性能的触摸屏（Touch Screen）实现对整机工作的智能性操控。以先进的进口马达、变速装置及机械传动组成全新高速的传动系统，实现无极变速、同步传送、自动对位、无件不印等控制功能。

(I). Product Description:

The machine can meet the needs of cylindrical and oval cylindrical printing, and is compatible with the filter element, plastic, glass, metal and other containers. The programmable controller (PLC) and high performance touch screen (machine) realize the intelligent control of Touch Screen). With the advanced imported motor, variable speed device and mechanical transmission composed of a new high-speed transmission system, to achieve the infinite variable speed, synchronous transmission, automatic alignment, no piece without printing and other control functions.

（二）、主要功能：

1、可供斜台上料输送带，交叉档料系统

2、自动推倒功能，机械手臂式上料

3、火焰表面处理系统

4、无级变速控制系统（变频器控制）

5、无件不印刷系统（采用高性光电传感器，透明和黑色都能可靠识别）

6、uv紫外线固化系统

7、机械手臂下料

8、下料输送带

(II) Main functions:

1. Feed platform conveyor belt and cross gear system

2. Automatic push-down function, mechanical arm type feeding

3. Flame surface treatment system

4. Stepless variable speed control system (frequency converter control)

5. No printing system (high property photoelectric sensor, transparent and black bottles)

6. uv UV curing system

7. Mechanical arm feeding

8. Feed the conveyor belt

（三）、主要配置：

⊕ 机器主电机:SITI（意大利）

⊕ 可编程控制器(PLC)：OMRON（日本欧姆龙）

⊕ 触摸屏：OMRON（日本欧姆龙）

⊕ 光电开关：KEYENCE（日本基恩士/SICK(德国)

⊕ 按钮开关：IDEC(日本和泉)

⊕ 接触器： SCHNEIDER（施奈德）/FUJIFILM(日本富士）

⊕ 继电器：OMRON（日本欧姆龙）

⊕ 变频器：OMRON（日本欧姆龙）

⊕ 气动元件：SMC（日本）

(III) Main configuration:

1. Machine main motor: SITI (Italy)

2. Programmable controller (PLC): OMRON (Omron, Japan)

3. Touch screen: OMRON (Omron, Japan)

4. Photoelectric switch: KEYENCE (Japan / SICK (Germany)

5. Button switch: IDEC (Japan)

6. Contactor: SCHNEIDER (Schneider) / FUJIFILM (Fuji, Japan)

7. Relay: OMRON (Omron, Japan)

8. frequency converter: OMRON (Omron, Japan)

9. Pneumatic element: SMC (Japan)

（四）、技术参数：

⊕ 圆形印刷直径：ф20mm~ф100mm（以实际产品定）

⊕ 圆形印刷高度：30mm~270mm

⊕ 最快印刷速度：35-45Pcs/分钟，根据产品实际大小而定。

⊕ 电力要求：AC380V 3Phase 50Hz /60Hz

⊕ 额定功率：主机7.5KW

⊕ 气压要求：5～8bar

⊕ 机器尺寸：约L2500MM*W1100MM*H1700MM（具体以实物为准）

⊕ 机械重量：约2000kg

(IV) Technical parameters:

1. Circular printing diameter: 30mm~ ф100mm (on actual product)

2. Circular printing height: 30mm~270mm

3. Fastest printing speed:35-45Pcs / min, depending on the actual size of the product.

4. Power requirements: AC380V 3Phase 50Hz / 60Hz

5. Rated power: host 7.5KW host

6. Air pressure requirement: 5~8bar

7. Machine size: about L2500MM * W1100MM * H1700MM (subject to material objects)

Mechanical weight: approximately 2,000 kg
