详细介绍：

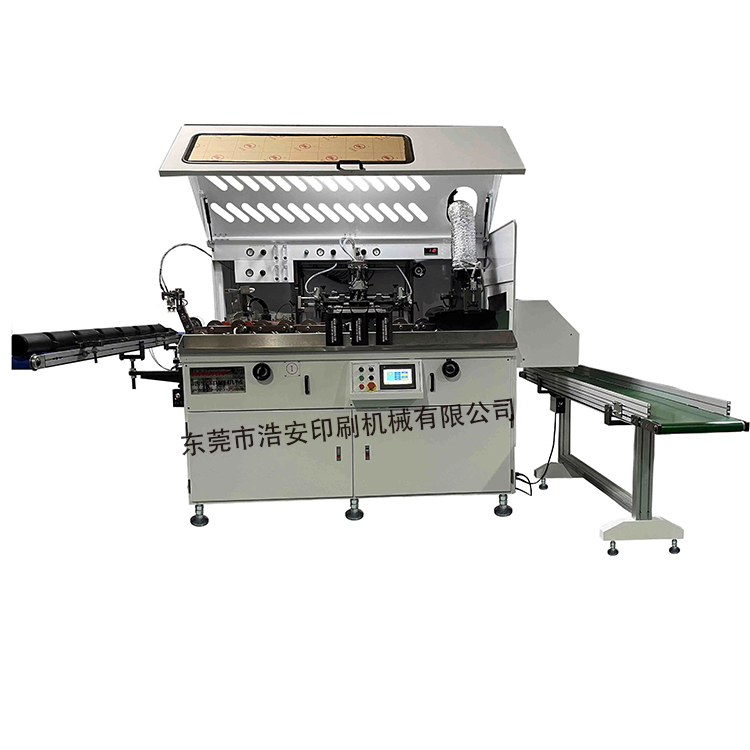

机器图片

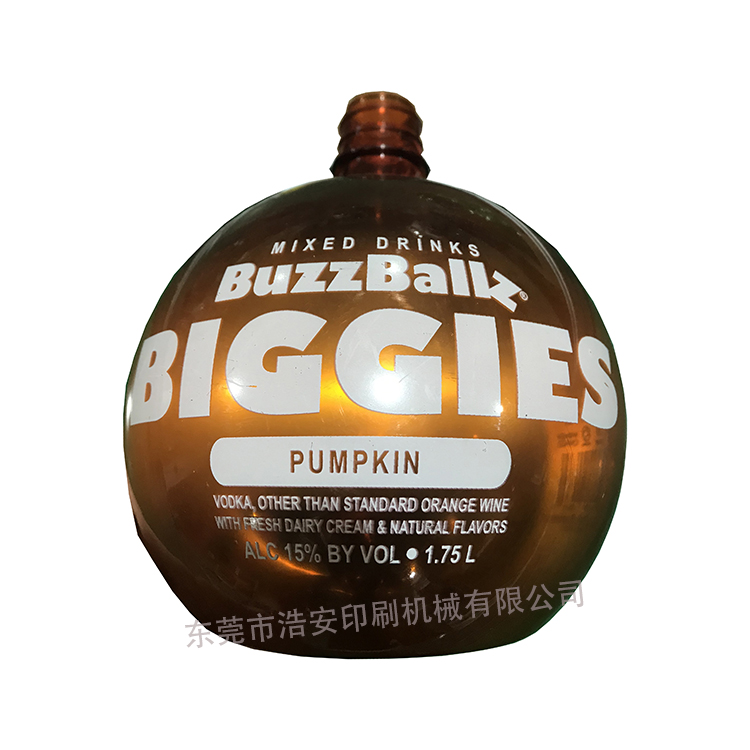

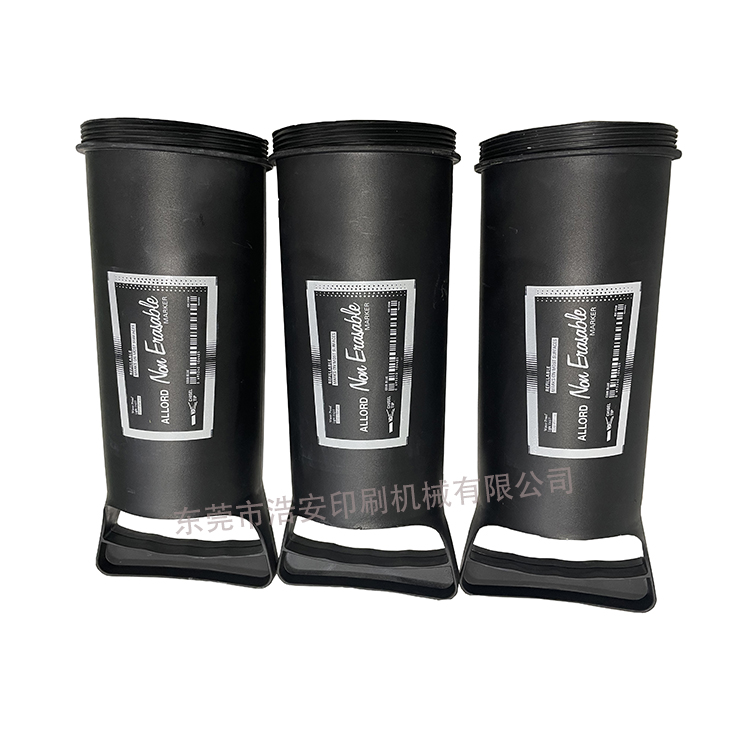

产品图片

一、产品描述：

      本机器能满足圆柱形、椭圆柱形和其他异形容器的圆弧面印刷需求，对打气筒、大圆瓶、塑胶、玻璃、金属等容器均有兼容性。本机通过可编程控制器（PLC）与高性能的触摸屏（Touch Screen）实现对整机工作的智能性操控。以先进的进口马达、变速装置及机械传动组成全新高速的传动系统，实现无极变速、同步传送、自动对位、无瓶不印等控制功能。 机器设备远销欧洲、美国、韩国、中东、南非 墨西哥等多个国家及地区，深受国内外客户的信赖。

I. Product Description:

The machine can meet the arc surface printing needs of cylindrical, oval cylindrical and other special-shaped containers, and is compatible with pumps, large round bottles, plastic, glass, metal and other containers. The programmable controller (PLC) and high performance touch screen (machine) realize the intelligent control of Touch Screen). With the advanced imported motor, variable speed device and mechanical transmission composed of a new high-speed transmission system, to achieve the infinite variable speed, synchronous transmission, automatic alignment, no bottle without printing and other control functions. Machinery and equipment are exported to Europe, the United States, South Korea, the Middle East, South Africa and Mexico and other countries and regions, by domestic and foreign customers trust.

二、主要功能：

1、可供斜台上料输送带

2、上料自动调头功能

3、火焰表面处理系统

4、无级变速控制系统（变频器控制）

5、自动预先对位系统

6、无件不印刷系统（采用高性光电传感器，透明和黑色都能可靠识别）

7、UV紫外线固化系统  HONOVIA（UV美国汉诺威）

II. Main functions:

1. Feed conveyor belt for inclined platform

2. Automatic feeding u-turning function

3. Flame surface treatment system

4. Stepless variable speed control system (frequency converter control)

5. Automatic pre-counterpoint system

6. No bottle, no printing system (high nature photoelectric sensor, transparent and black bottles)

7. UV UV curing system HONOVIA (UV Hannover, USA)

三、主要配置：

1 机器主电机:SITI（意大利）

2可编程控制器(PLC)：OMRON（日本欧姆龙）

3 触摸屏：OMRON（日本欧姆龙）

4 光电开关：KEYENCE（日本基恩士/SICK(德国)

5 按钮开关：IDEC(日本和泉)

6 接触器： SCHNEIDER（施奈德）/FUJIFILM(日本富士）

7 继电器：OMRON（日本欧姆龙）

8 变频器：OMRON（日本欧姆龙）

9 紫外线固化系统：HONOVIA（美国汉诺威）

10 气动元件：SMC（日本）

Iii. Main configuration:

1 Machine Main motor: SITI (Italy)

2. Programmable controller (PLC): OMRON (Omron, Japan)

3 Touch screen: OMRON (Omron, Japan)

4 Photoelectric switch: KEYENCE (Japan / SICK (Germany)

5 Button switch: IDEC (Japan)

6 Contactor: SCHNEIDER (Schneider) / FUJIFILM (Fuji, Japan)

7 Relay: OMRON (Omron, Japan)

8 frequency converter: OMRON (Omron, Japan)

9 UV-curing system: HONOVIA (Hannover, USA)

10 Pneumatic element: SMC (Japan)

四、技术参数：

1 圆形印刷直径：ф15mm~ф100mm（以实际产品定）

2 圆形印刷高度：20mm~270mm

3 扁形印刷直径：R20mm~R180mm

4 扁形印刷高度：20mm~270mm

5 最快印刷速度：35-45Pcs/分钟左右（实际以印刷产品大小而定）

6 电力要求：AC380V 3Phase 50Hz /60Hz

7 额定功率：7KW

8 气压要求：5～8bar

9 机器尺寸（MM）：约L2700*W2000*H1900（具体以实物为准）

10 机械重量：约2000kg

Iv. Technical parameters:

1 Circular printing diameter: 15mm~ ф100mm (on actual product)

2. Circular printing height: 20mm~270mm

3 Flat printing diameter: R20mm~R180mm

4. Flat printing height: 20mm~270mm

5 Faster printing speed: about 35-45Pcs / min (actual size of printing product)

6 Power requirements: AC380V 3Phase 50Hz / 60Hz

7 Rated power: 7KW

8 Air pressure requirement: 5~8bar

9 Machine size (MM): about L2700 * W2000 * H1900 (subject to the material object)

10 Mechanical weight: about 2,000kg
