详细介绍：

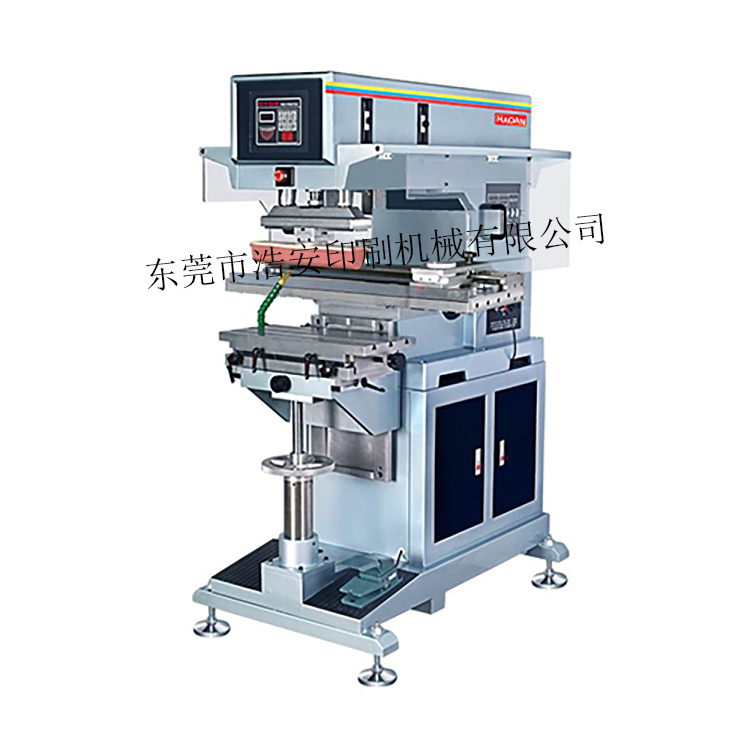

机器图片

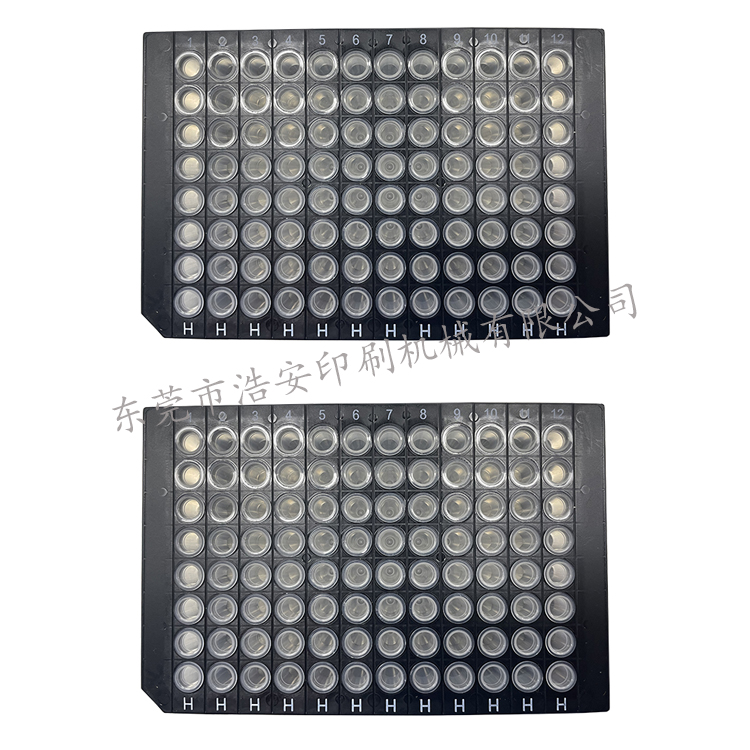

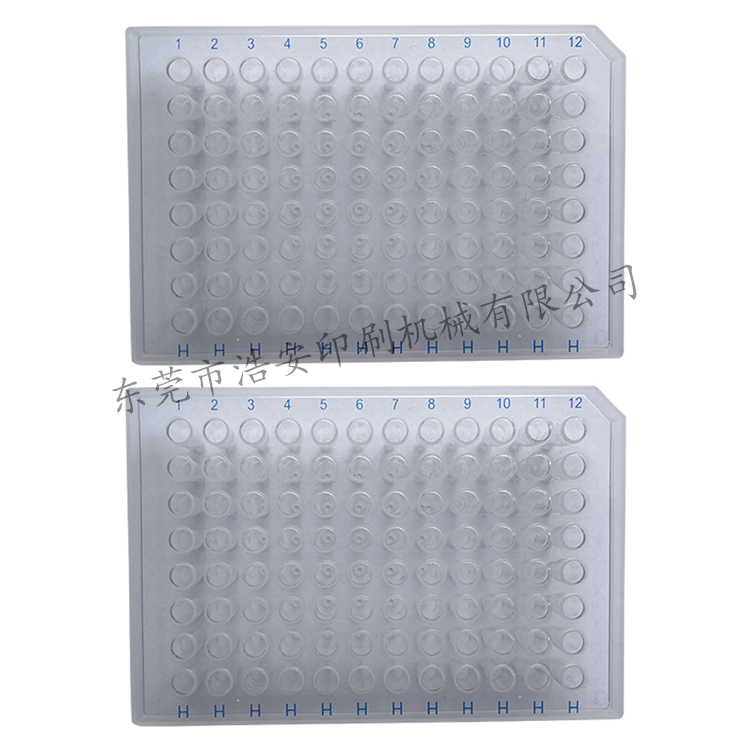

产品图片

一、产品特性（Product features）

此系列单色移印机采用清洁、环保的油盅式供油系统、微电子键盘控制操作界面，独立的胶头上下行程与速度调控，配备X、Y、Z轴向及角度调节工作台。具有适用范围广、印刷效率高、操作简易等特点。能满足不同印刷环境（平面、曲面、不规则面）图文印刷的要求。广泛适用于电子、电器、五金、塑胶、玩具、文具等行业。

This series of monochrome pad printing machine adopts clean and environmental friendly oil cup type oil supply system, microelectronic keyboard control operation interface, independent glue head down stroke and speed control, equipped with X, Y, Z axis and Angle adjustment workbench.With a wide range of applications, high printing efficiency, easy to operate and so on.Can meet different printing environment (plane, surface, irregular surface) graphic printing requirements.Widely used in electronics, electrical appliances, hardware, plastic, toys, stationery and other industries.

二、工艺（process）

机架使用加厚方通，结实，表面烤漆，光亮。铸铝机壳 ，配件CNC加工及氧化，美观。

The rack is made of thickened, solid, lacquered surface and bright.Casting aluminum chassis, accessories CNC processing and oxidation, beautiful.

三、供油系统介绍（Introduction of oil supply system）

油盅式供油系统，其特点是经济环保。最大限度的减少油墨浪费和气味的挥发。采用进口陶瓷杯环，使用寿命长，油墨可长时间放置油杯内，浓度仍然稳定。

Cup type oil supply system is characterized by economic and environmental protection.To minimize ink waste and odor volatilization.Imported ceramic cup ring, long service life, ink can be placed in the oil cup for a long time, the concentration is still stable.

四、技术参数（Technical parameters）

钢板尺寸  Plate Size（mm）：                  100*450

印刷面积Printing area（mm）:                   Ф80*350

油盅The oil cup（mm）：                           Ф86

工件高度max print(mm):                              220

印刷速度 print speed （hour）：             1600pcs

电源及功率 power（w）：     110vor220v 50/60HZ 40W 6Bar

机身尺寸Dimension(mm）:                    770*580*1400

重量weight（kg）:                                        115
