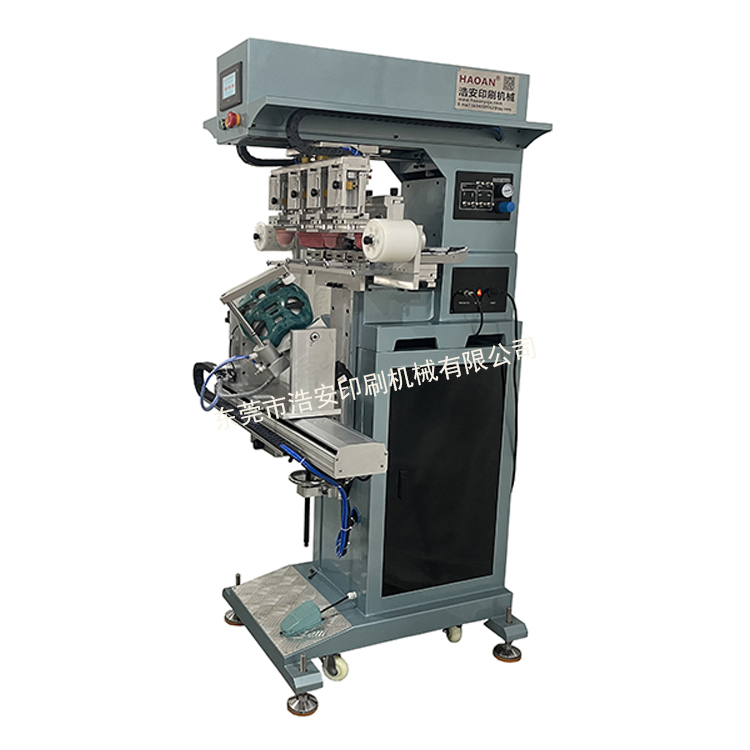

一、产品特性（Product features）

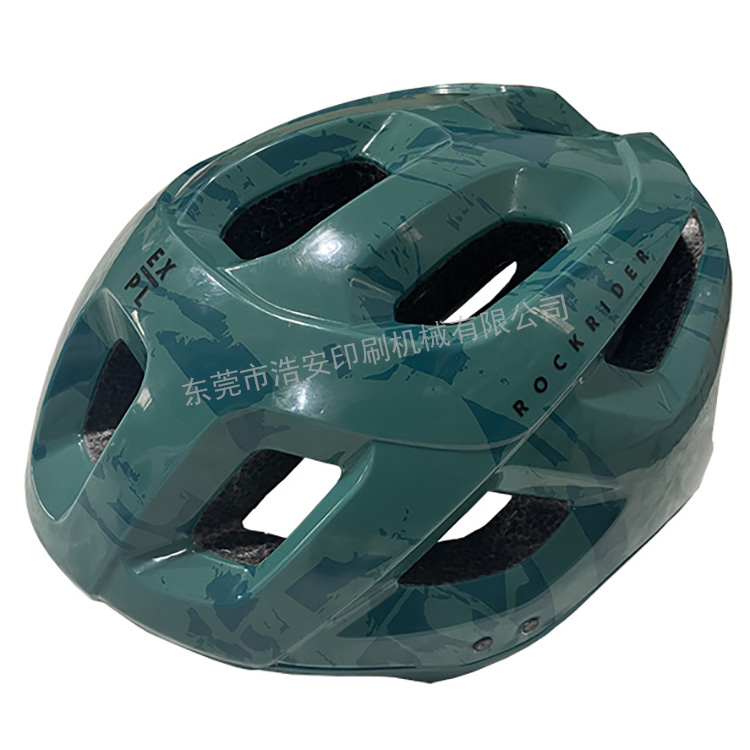

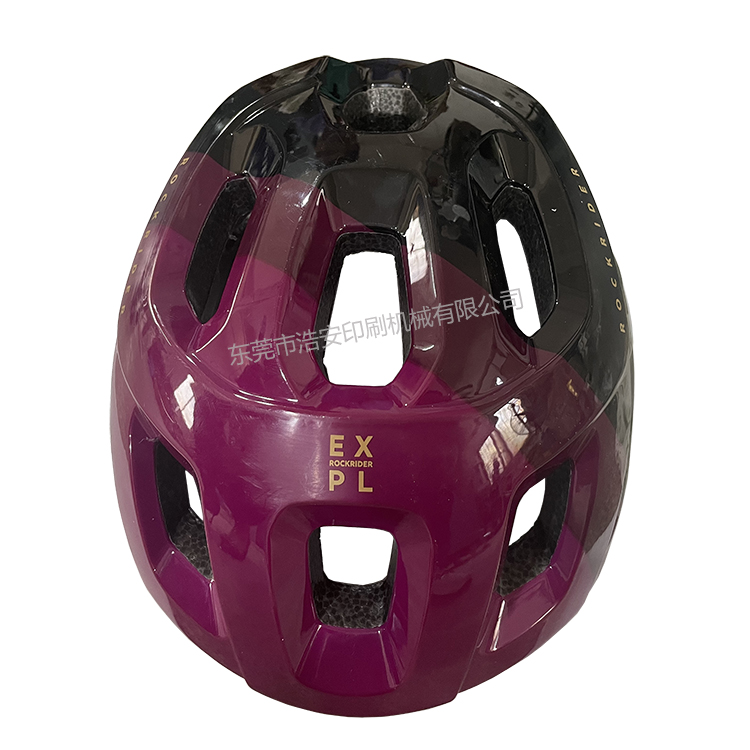

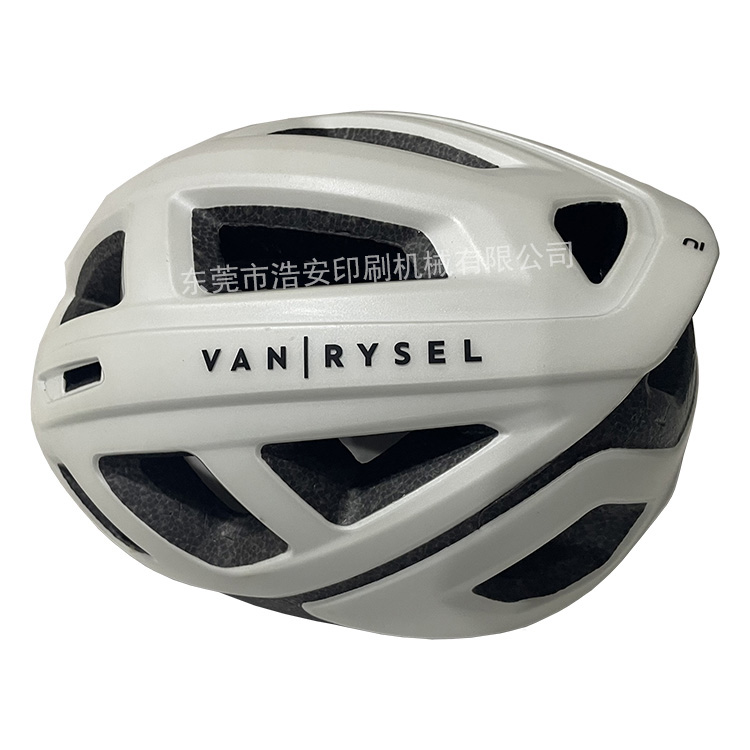

此系列移印机专为头盔多色印刷而研发，可满足1-4色印刷需要，本系列移印机可选择油盆式与油盅式供油系统、触摸屏控制操作界面，进口PLC控制，独立的胶头上下行程与速度调控，工作台配备三轴伺服控制，旋转角度0-360度可调，具有适用范围广、印刷效率高、操作简易等特点。能满足不同印刷环境（平面、曲面、不规则面，多面）图文印刷的要求。广泛适用于汽车配件，电子、电器、五金、塑胶、玩具、文具等行业。

Designed for multi-color printing, this series of printing machine can meet the needs of 1-5 color printing. This series of printing machine can choose oil basin and cup oil supply system, touch screen control operation interface, import PLC control, independent rubber head up and down stroke and speed control, the worktable is equipped with three-axis servo control, rotation angle 0-360 degrees adjustable, with a wide range of application, high printing efficiency, simple operation and other characteristics. Can meet the different printing environment (plane, curved surface, irregular surface, multi-sided) graphic printing requirements. Widely used in auto parts, electronics, electrical appliances, hardware, plastic, toys, stationery and other industries.

二、工艺（process）

机架使用加厚方通，结实，表面烤漆，光亮。铸铝机壳 ，配件CNC加工及氧化，美观。

The rack is made of thickened, solid, lacquered surface and bright.Casting aluminum chassis, accessories CNC processing and oxidation, beautiful.

三、供油系统介绍（Introduction of oil supply system）

油盆式供油系统.特点是：印刷面积大，安装拆卸方便，操作上更灵活，直接将调好的油墨倒入油盆内即可

油盅式供油系统.特点是：环保，节能，美观。

Oil basin oil supply system. Features: large printing area, easy installation and disassembly, more flexible operation, directly adjust the ink into the oil basin can be

Oil cup oil supply system. Features: environmental protection, energy saving, beautiful.

四、工作台左右伺服移动，使用导轨

Oil cup oil supply system. Features: environmental protection, energy saving, beautiful.

五、伺服电机左右旋转0-360度

Servo motor rotation 0-360 degrees

六、伺服电机前后旋转360度

180 degrees of rotation of the servo motor

七、三菱PLC控制，触摸屏控制操作界面

Mitsubishi PLC control, touch screen control operating interface

八、技术参数（Technical parameters）

钢板尺寸  Plate Size（mm）：                          100*150

印刷面积Printing area（mm）:                           60*100

工件高度max print(mm）:                                     300

印刷颜色Printing Color：                                     1-4色

印刷速度 print speed （hour）：                   600-1000pcs

电源及功率 power（w）：              110vor220v 50/60HZ 60W 6Bar

机身尺寸Dimension(mm）:                        1390*1385*1950

重量weight（kg）:                                                 350
