详细介绍：

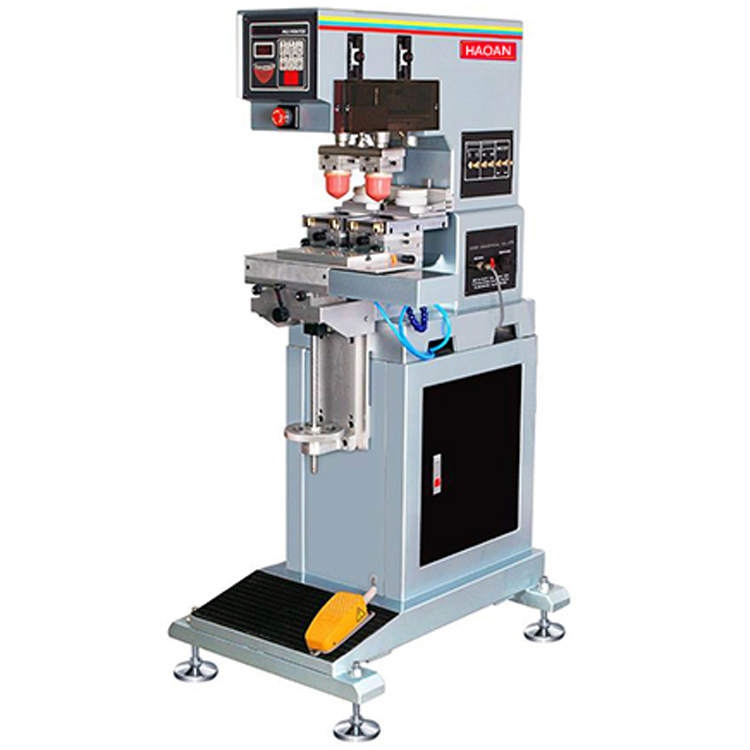

机器图片

产品图片

一、产品特性（Product features）

此系列双色移印机采用油盅式供油系统、微电子键盘控制操作界面，独立的胶头上下行程与速度调控，配备X、Y、

Z轴向及角度调节工作台。具有适用范围广、印刷效率高、操作简易等特点。能满足不同印刷环境（平面、曲面、不规则面）图文印刷的要求。广泛适用于电子、电器、五金、塑胶、玩具、文具等行业。

This series of two-color pad printing machine adopts oil cup type oil supply system, microelectronic keyboard control operation interface, independent glue head down stroke and speed control, equipped with X, Y, Z axis and Angle adjustment workbench.With a wide range of applications, high printing efficiency, easy to operate and so on.Can meet different printing environment (plane, surface, irregular surface) graphic printing requirements.Widely used in electronics, electrical appliances, hardware, plastic, toys, stationery and other industries.

二、工艺（process）

机架使用加厚方通，结实，表面烤漆，光亮。铸铝机壳 ，配件CNC加工及氧化，美观。

The rack is made of thickened, solid, lacquered surface and bright.Casting aluminum chassis, accessories CNC processing and oxidation, beautiful.

三、供油系统介绍（Introduction of oil supply system）

油盅式供油系统，其特点是经济环保。最大限度的减少油墨浪费和气味的挥发。采用进口陶瓷杯环，使用寿命长，油墨可长时间放置油杯内，浓度仍然稳定。

Cup type oil supply system is characterized by economic and environmental protection.To minimize ink waste and odor volatilization.Imported ceramic cup ring, long service life, ink can be placed in the oil cup for a long time, the concentration is still stable.

四、双色直推式穿梭台选用优质合金加工，精密气动元件驱动滑台来回穿梭，性能稳定可靠、移动精确、套位印刷效果出色。

The two-color direct push shuttle table is made of high quality alloy and driven back and forth by precise pneumatic components. It has stable and reliable performance, accurate movement and excellent printing effect.

 五、技术参数（Technical parameters

钢板尺寸 Plate Size（mm）：          0.5*100*200/2

印刷面积Printing area（mm):                  Ф80

油盅The oil cup（mm）：                       Ф86

工件高度max print(mm):                         240

印刷速度print speed （hour）：           1200pcs

电源及功率power（w）：       110vor220v 50/60HZ40W 6Bar

机身尺寸Dimension(mm):                  770*650*1400

重量weight（kg）:                                 120
