详细介绍：

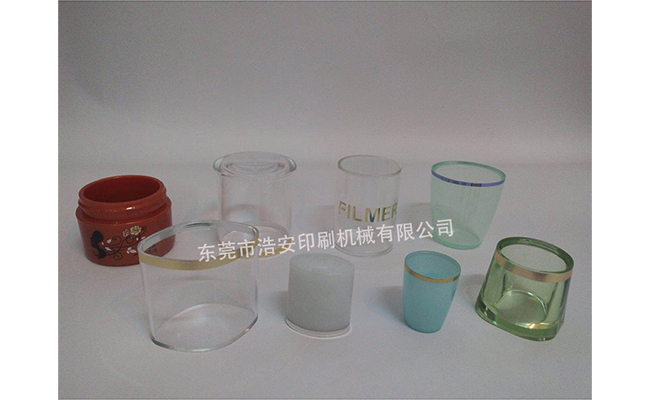

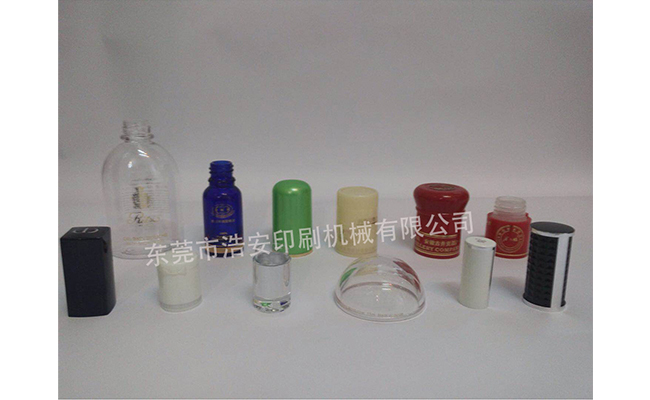

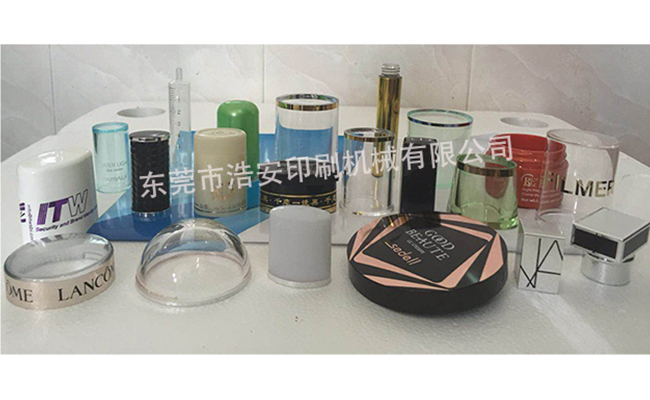

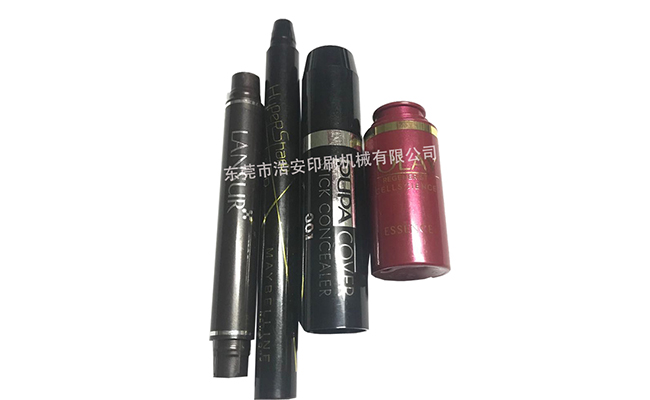

产品图片

产品简介

专为圆形产品烫印而设计,主要适用于软管、瓶盖、离心管、膏霜罐的等圆形制品。主传动采用欧洲名牌传动器材，辅以高速精密间隙分割器，实现部分精确分度传动，使整机运行平稳可靠，烫金速度高达3000pcs/hr整机控制采用国际名品PLC控制及设置简便快捷的触摸屏操作，轻易实现人机对话，操作更加得心应手。数控步进马达收纸，高效精准，可获得更加优秀的烫印效果。具有离子风除尘、无件不烫印、气压过低报警、废料/错料等自动报警自动检测功能。烫印伺服左右定位，步进前后定位（针对软管）。全自动上料系统与卸料机械手装置确保了烫印的连续与稳定，也尽可能避免了在烫印过程中造成承印物表面的刮伤，更加保障了作业员的安全操作。

根据客户要求，可选配以下配置

1、全自动上料器(可节省操作人员，实现全面自动化生产）

2、机械定位装置

Product introduction

Designed for hot stamping of circular products, mainly for hoses, caps, centrifuge tubes, cream cans and other circular products

circular products cream cans, and can achieve accurate color and multi-color printing part products.

The main transmission adopts the European famous brand transmission equipment, supplemented

by high speed precision gap splitter, so as to achieve the accurate degree of transmission, make the

whole machine running more stable and reliable,  gilding  speed  as  high  as  3000pcs/hr

Machine control using the international name PLC control and set up a simple and quick touch

screen operation, easy to achieve human-computer dialogue, the operation is more handy.

CNC stepper motor paper, efficient and accurate, can get a better effect of hot stamping

It has the function of automatic detection of dust pollution, no hot stamping, low air pressure alarm,

waste material / wrong material, etc.

Hot stamping servo left and right positioning, step before and after positioning (for hose)

Automatic feeding system and unloading manipulator device to ensure the continuous and

stable hot stamping, as far as possible to avoid the stamping process caused by scratches on the

substrate surface, but also to ensure the safe operation of the operator

Optional configuration(according to customers requirements)

Automatic feeder(can save manpower and realize fully automatic production)

Mechanical positioning device.

技术参数（Specifications)

烫印尺寸范围（Hot stamping range)                                 Φ：10mm-75mm L:20mm-230mm

电源要求（Power Supply)                                                       380V 3Phase 50HZ 4.5Kw

气源要求(Air Supply)                                                                            6-8Bar

烫印温度（Thermoprinting machine)                                                   150°-280°

速度（Speed)                                                        45Pcs/min（按客户产品实际尺寸定产量）

外形尺寸（dimension）                                                        2500(L)x1700(W)x1900 (H)mm

总功率（Total Power）                                                                      3.8Kw/4.6Kw

重量（Weight）                                                                                  1200KG
