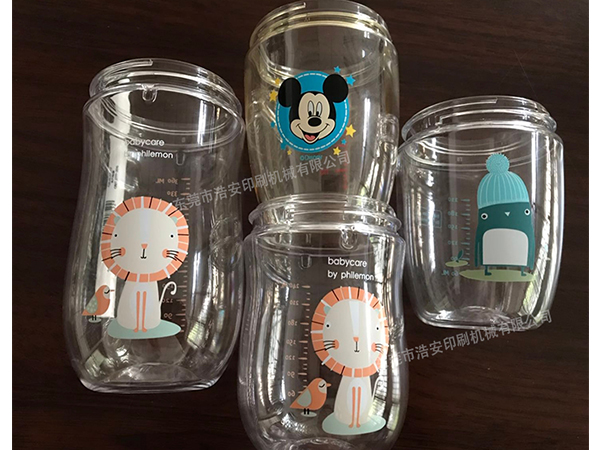

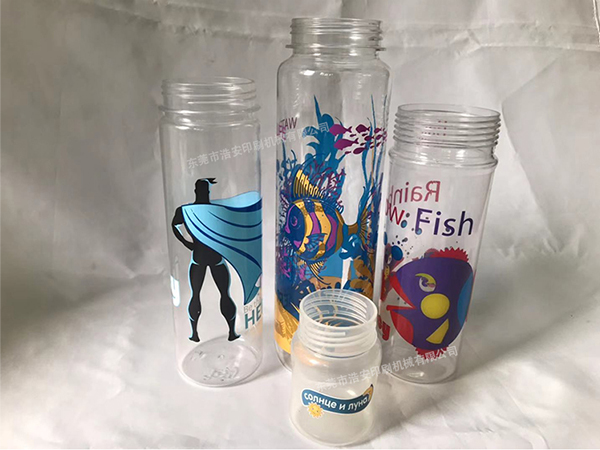

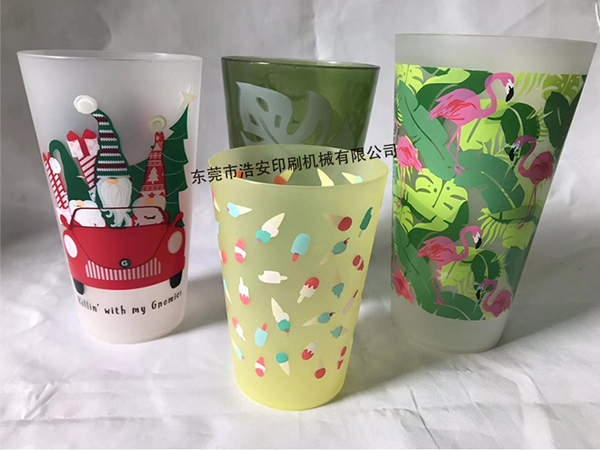

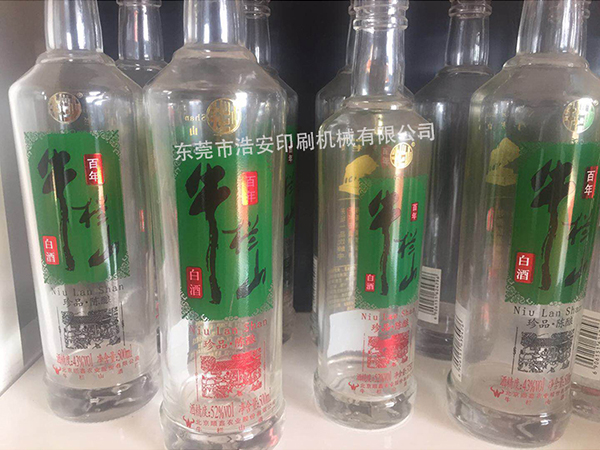

产品图片

4色丝印龙技术要求及配置明细

产品描述The product description：

     本机器能满足圆柱形、椭圆柱形和其他异形容器的圆弧面印刷需求，对塑胶、玻璃、金属等材质的容器均有兼容性。本机通过可编程控制器（PLC）与高性能的触摸屏（Touch Screen）实现对整机工作的智能性操控。以先进的进口马达、变速装置及机械传动组成全新高速的传动系统，实现无极变速、同步传送、自动对位、无瓶不印等控制功能。

This machine can meet the printing requirements of circular surface of cylindrical, elliptic cylinder and other special-shaped containers. It is compatible with containers made of plastic, glass, metal and other materials.The machine realizes intelligent control of the whole machine through PLC and high performance Touch Screen.With the advanced imported motor, variable speed device and mechanical transmission constitute a new high-speed transmission system, to achieve the variable speed, synchronous transmission, automatic alignment, no bottle no print and other control functions.

主要功能The main function：

1 自动上料机上料模式

2 上料自动调头功能，静电表面处理

3双火焰表面处理系统

4无级变速控制系统（变频器控制）

5自动预先对位系统

6无瓶不印刷系统（采用高性光电传感器， 透明瓶和黑色瓶都能可靠识别）

7紫外线固化系统(变压器式，5KWUV灯)

8自动下料，400输送带

Feeding mode for sloping platform

Automatic turning function of feeding, electrostatic surface treatment

Double flame surface treatment system

4 stepless variable Speed control system (inverter control)

Automatic pre-matching system

6 No bottle and no printing system (using high performance photoelectric sensor, transparent bottle and black bottle can be reliably identified)

7 UV curing system (transformer type, 5KWUV lamp)

8 Automatic blanking, 400 conveyor belt.

主要配置Main configuration：

1 机器主减速电机:MOTOVARIO（意大利）

2 可编程控制器(PLC)：OMRON（日本欧姆龙）

3 触摸屏：OMRON（日本欧姆龙）或威纶

4光电开关：YAMATA（日本雅玛特）/SICK(德国)

5 按钮开关：IDEC(日本和泉)

6接触器： SCHNEIDER（施奈德）

7继电器：OMRON（日本欧姆龙）

8 变频器：OMRON（日本欧姆龙）

9紫外线固化系统：HONOVIA（美国汉诺威）

10气动元件：SMC（日本）

1 Main reduction motor of machine :MOTOVARIO (Italy)

2 Programmable Logic Controller (PLC) : OMRON (OMRON)

3 Touch screen: OMRON (Japan OMRON) or Willon

4 photoelectric switch: YAMATA (Yamat, Japan) /SICK(Germany)

5 Button switch: IDEC(Japan And Izumi)

6 Contactor: SCHNEIDER

7 Relay: OMRON (OMRON, Japan)

8 Frequency Converter: OMRON (OMRON, Japan)

9 UV curing System: HONOVIA (Hanover, USA)

10 Pneumatic component: SMC (Japan)

技术参数Technical parameters：

1.圆形印刷直径：ф15mm~ф150mm

2.圆形印刷高度：20mm~270mm

3.扁形印刷直径：R20mm~R180mm

4.扁形印刷高度：20mm~270mm

5.最快印刷速度：印刷圆形产品时，印刷最快速度50-65Pcs/分钟左右.

6 电力要求：AC220V 1Phase/AC380V 3Phase 50Hz /60Hz

7 额定功率： 主机7.5KW，副机6KWx3

8 气压要求：5～8bar

9 机器尺寸：约L10800mm*W2000mm*H1700mm（具体以实物为准）

10 机械重量：约1240kgx4

1.Diameter of circular printing: 15mm~ 80mm

2. Circular printing height: 20mm~270mm

3.Flat printing diameter: R20mm~R180mm

4.Flat printing height: 20mm~270mm

5. Fastest printing speed: when printing circular products, the fastest printing speed is about 50-65pcs/min.

6 Power requirements: AC220V 1Phase/AC380V 3Phase 50Hz /60Hz

7.Rated power: main engine 7.5KW, auxiliary engine 6KWx3

8.Pressure requirement: 5 ~ 8bar

9. Size of machine: approx. L8831 * W2000 * H1700 (for details, please refer to the material object)

10 Mechanical weight: approx. 1240kgx4
