详细介绍：

产品图片

产品简介

专为化锥度杯等锥面类产品印刷而研制的。

集成同步自动进出料、出入料机械手、产品检测、离子风除尘、LED固化及快/慢速机械同步传送等多种功能，大大提高了印刷效率，印刷速度最快可达3300pcs/hr。

通过电子传感器实现“无件不印刷”、气压过低报警等自动监测功能。

全机电气元件及控制系统均进口自德国日本，确保了稳定得印刷品质。

可依据客户对自身产品的特殊要求，专门设计并量身定做设备。

Introduction

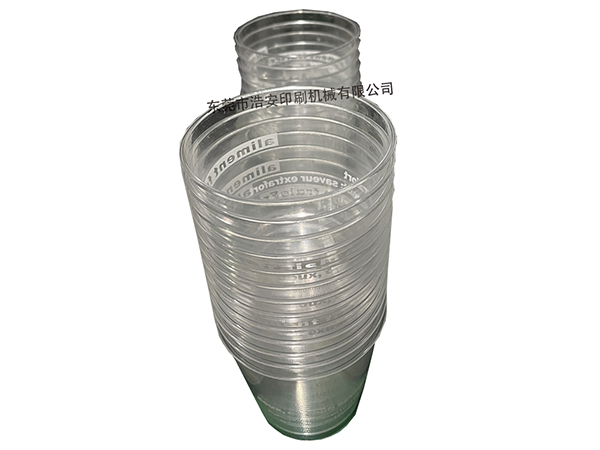

Specifically developed for printing cone products such as cone cups.

Integrated synchronous automatic entry and exit materials, access manipulator, product detection, ion air dust removal, LED curing and fast / slow mechanical synchronous transmission and other functions, greatly improve the printing efficiency, the fastest printing speed up to 3300pcs / hr.

The electronic sensor realizes the automatic monitoring functions such as "no piece without printing" and the air pressure alarm is too low.

All electromechanical gas components and control system are imported from Germany and Japan, to ensure a stable printing quality.

Can be specially designed and tailored equipment according to the special requirements of their own products.

技术参数（Specifications)

最大印刷直径（Maximum print diameter）                        ф15mm~ф100mm

最快印刷速度（Printing Capacity）                                         55PCS/min

总功率（Total Power）                                                             7Kw

电力要求(Voltage)                                       AC220V 1Phase/AC380V 3Phase 50Hz /60Hz

气压要求(Air Pressure)                                                            4-6bar

重量（Weight）                                                                    1500KG

机器尺寸(Machine Size)                                        3500(L)X2300(W)X1900(H)mm
