详细介绍：

机器部位图片

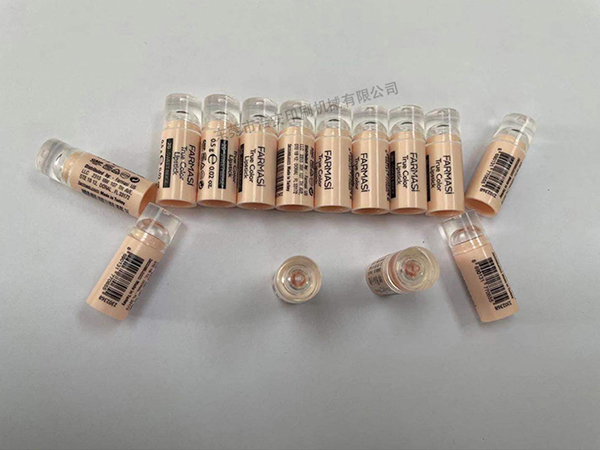

产品图片

一、产品简介Product introduction：

专为圆形产品印刷而设计,主要适用于离心管与医疗刻度管

主传动采用欧洲名牌传动器材，辅以高速精密间隙分割器，实现部分精确分度传动，使整机运行平稳可靠，印刷速度高达3600pcs/hr

整机控制采用国际名品PLC控制及设置简便快捷的触摸屏操作，轻易实现人机对话，操作更加得心应手。

油墨固化可采用电子式紫外线固化或红外线干燥，在保证性能稳定和节省电能的情况下，可获得更加优秀的固化效果。

具有离子风除尘、无件不印刷、气压过低报警、废料/错料等自动报警自动检测功能。

全自动上料系统与卸料机械手装置确保了印刷的连续与稳定，也尽可能避免了在印刷过程中造成承印物表面的刮伤，更加保障了作业员的安全操作。

Designed for circular printing, mainly for medical scale tubes

The main transmission adopts the European famous brand transmission equipment, supplemented by high speed precision gap splitter, so as to achieve the accurate degree of transmission, make the whole machine running more stable and reliable, printing speed can be as high as 4800pcs/hr

Machine control using the international name PLC control and set up a simple and quick touch

screen operation, easy to achieve human-computer dialogue, the operation is more handy.

Ink curing can be cured by electronic UV or infrared drying, in the case of ensuring stable

performance and energy saving, can get a better curing effect.

With ion wind dust, no non printing, low pressure alarm, scrap / wrong material, such as automatic alarm automatic detection function.

Automatic feeding system and unloading manipulator device to ensure the continuity and stability of the printing, but also as far as possible to avoid the printing process caused the surface of the substrate scratch, more to protect the safety of the operator.

二、机器配置特色Features of Machine Configuration：

1、7寸触摸屏欧姆龙（日本）

2、PLC 欧姆龙（日本）或松下

3、转盘运转由德士分割器驱动（日本三共）

4、印刷机构全机械连动,加光电（德国）

5、左右滚珠丝杆(运行更平稳)（日本）

6、15轴管位座 ,紧密NSK轴承,进口硬轴组成（日本）

7、主传动由意大利摩多利减速机配电机，欧姆龙变频器控制（意利与日本）

8、滚珠丝杆与导轨均采用日本THK品牌（日本）

9、火焰（JenwaL）可以反馈煤气信号，本机UV灯箱的高度调节

10、气动使印刷品质更稳定. （日本SMC）

11、产能：2700-3600pcs/hour

1.7 inch touch screen Omron (Japan)

2.PLC Omron (Japan) or Panasonic

3. turntable operation driven by Tex splitter (Sankyo)

4.All-mechanical linkage of  printing agencies, plus photoelectricity (Germany)

5. left and right bead rod (more stable)(Japan)

6.15 Shaft seat, tightly NSK bearing, imported hard shaft composition (Japan)

7. main drive is controlled by Italian Modoli Reducer Distribution Machine, Omron Inverter (Italy and Japan)

8. ball wire rod and guide rail are adopted Japanese THK brand (Japan)

9. flame (JenwaL) can feedback gas signal, this machine UV light box height adjustment

10. Pneumatics makes printing more stable. (SMC or Yadek, Japan)

11. Capacity: pcs/hour 2400-2700

三、技术参数（Specifications)

印刷尺寸范围（Printed Object Dimension)                  Φ：13mm-40mm L:20mm-200mm

电源要求（Power Supply)                                                      380V 3Phase 50HZ

气源要求(Air Supply)                                                                     6-8Bar

UV灯功率（UV lamp power）                                                         3.6kw

速度（Speed)                                                                        2700-3600Pcs/hr

外形尺寸（dimension）                                                (L)2500x(W)1700x(H)1900 mm

总功率（T0tal Power）                                                                  4.6Kw

重量（Weight）                                                                            2000kg
