案例名称：F12全自动高速平面丝印机
更新时间：2020.06.04
出品单位：

更多产品图片：

详细介绍：

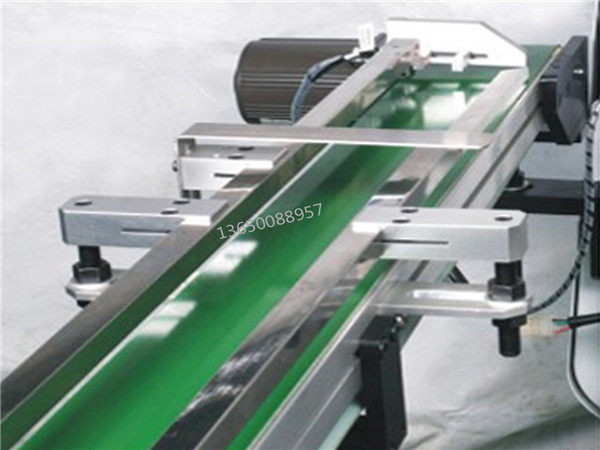

输送带Conveyor belt

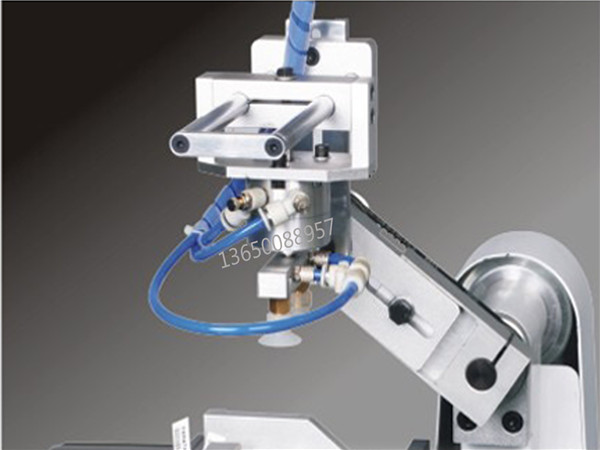

自动定向机械手Automatic directional manipulator

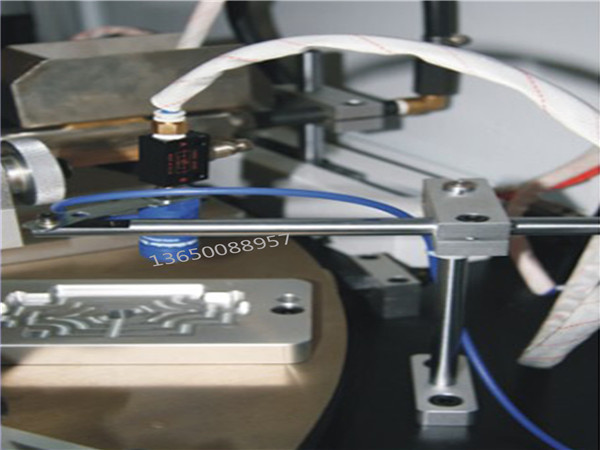

等离子除尘Plasma dust removal

火焰处理Flame treatment

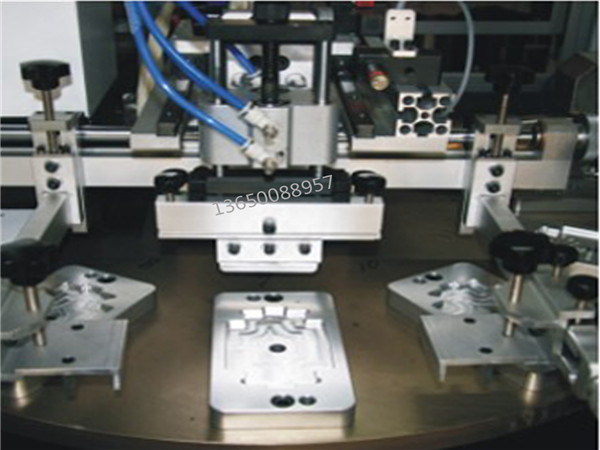

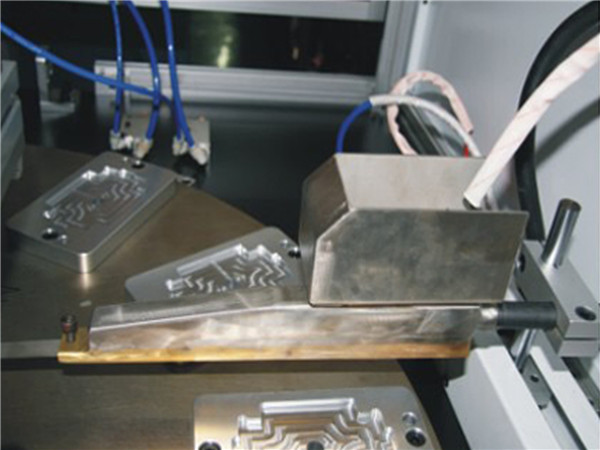

印刷与定位Printing and positioning

UV固化 UV curing

产品简介Product Profile

专为平面承印物而设计，结构简单合理调试方便快捷、运行稳定可靠。

整机集成同步自动上料、自动升降印刷及紫外线固化等多种功能，大大提高了印刷效率，印刷速度最快可达3000pcs/hr。

通过触摸屏显示屏操作轻松实现人机对话，使操作更加得心应手。

采用日本分割器，使印刷过程更高效更精准。

通过电子传感器实现“无件不印刷”、气压过低报警等自动监测功能。

全机电气元件及控制系统均进口自德国日本，确保了稳定得印刷品质。

可依据客户对自身产品的特殊要求，专门设计并量身定做设备。

Designed for flat substrate, simple and reasonable structure, convenient and fast debugging, stable and reliable operation.

Complete machine integrated synchronous automatic feeding, automatic lifting printing and UV curing and other functions, greatly improve printing efficiency, printing speed up to 3000 pcs/hr.

Through touch screen operation easy to achieve man-machine dialogue, so that the operation more handy.

Japanese splitter is used to make the printing process more efficient and accurate.

Through the electronic sensor to achieve "no printing ", too low air pressure alarm and other automatic monitoring functions.

All electrical components and control systems are imported from Germany and Japan to ensure stable printing quality.

According to the customer's special requirements for their own products, specially designed and customized equipment.

性能特点Performance characteristics

自动可调速防磨入料输送带及入料检测装置

美国高效UV灯固化系统

2米长成品检验输送带

独立PLC程控器及易用触摸屏操作控制系统

采用世界知名品牌电元器件，确保机器的持久稳定和耐用

Automatic adjustable speed and anti-wear feeding conveyor belt and feeding detection device

High Efficiency UV Lamp Curing System

2m long inspection conveyor belt

Independent PLC program controller and touch screen operating control system

Adopt world famous brand electric components to ensure the lasting stability and durability of the machine

技术参数（Specifications)

印刷产品外形（Shape of Printed Object)            平面产品（Flat Surface）

最大印刷长度（Max printing length）                 150mm

最大印刷宽度（Max printing width）                  100mm

印刷产品尺寸（Printed Object Dimension)        130x90mm

最快速度（Max.speed) 3000Pcs/hr

供气压力（Air pressure) 5-7kg/cm²

UV灯功率（UV lamp power） 3Kw

电源（Power Supply) AC380V 3Phase 50/60Hz 9Kw

外形尺寸（dimension） (L)2400 (含输送带）

(W)1200

(H)1700mm

重量（Weight） 1000Kg
