案例名称：324 全自动3-6色平面丝印机
更新时间：2020.06.04
出品单位：

更多产品图片：

详细介绍：

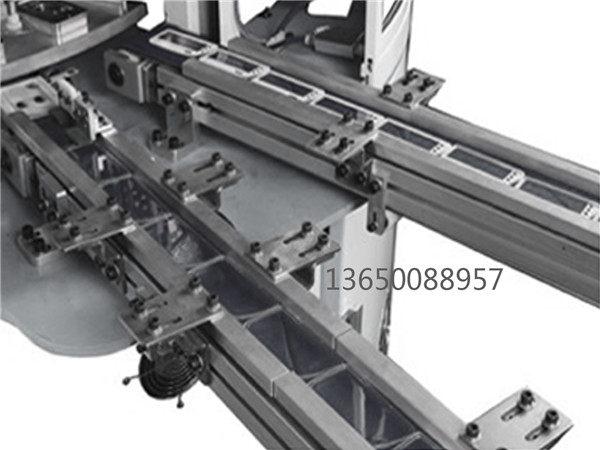

进料Feed

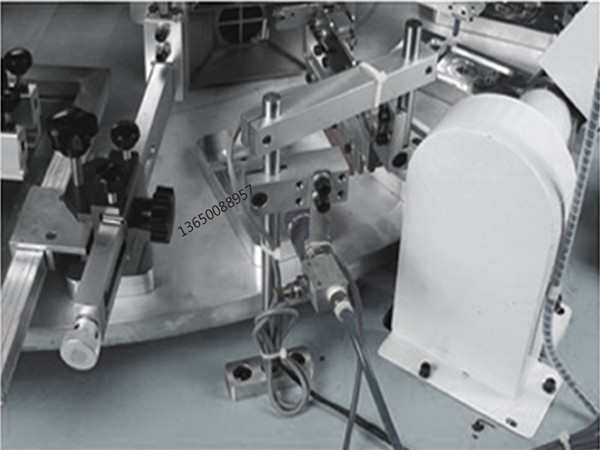

等离子除尘 Plasma dust removal

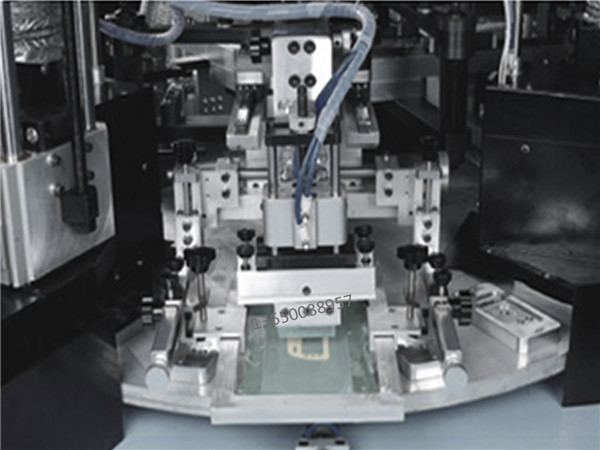

印刷系统Printing system

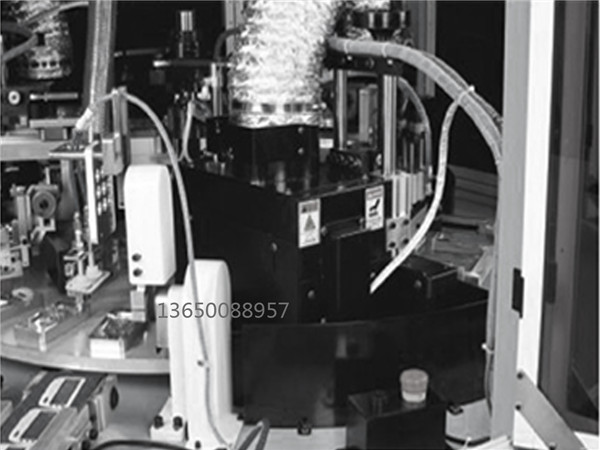

UV固化 UV curing

产品简介 Product Profile：

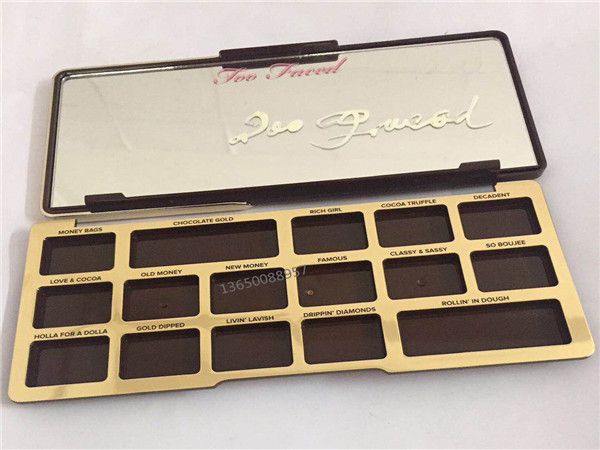

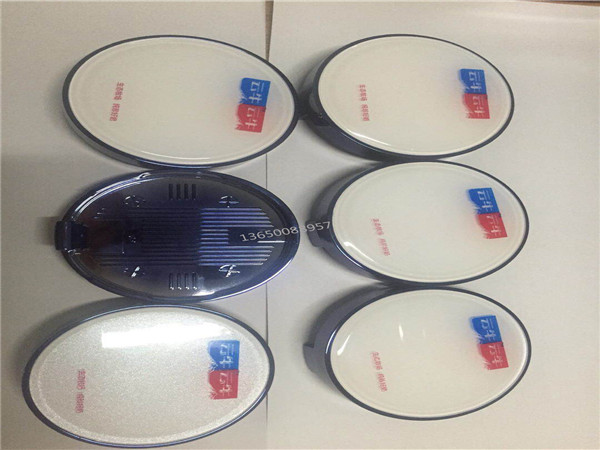

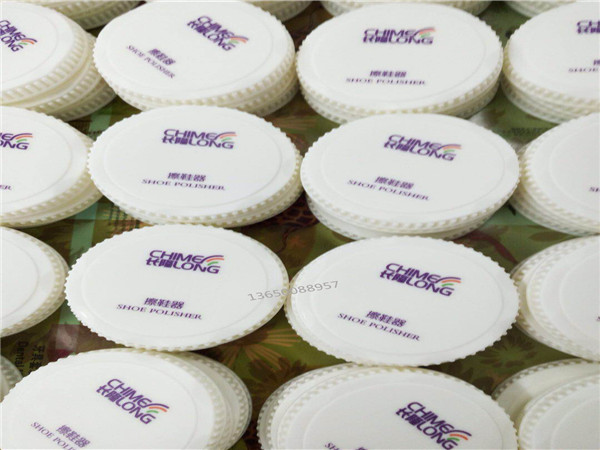

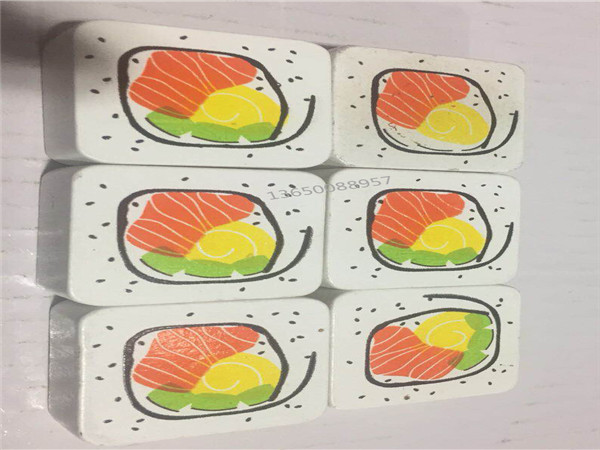

专为化妆粉盒、文具尺、平面笔、电表透明板等平面类产品之印刷而研制的。

集成同步自动进出料、出入料机械手、产品检测、离子风除尘、紫外线固化及快/慢速机械同步传送等多种功能，大大提高了印刷效率，印刷速度最快可达3000pcs/hr。

通过电子传感器实现“无件不印刷”、气压过低报警等自动监测功能。

全机电气元件及控制系统均进口自德国日本，确保了稳定得印刷品质。

可依据客户对自身产品的特殊要求，专门设计并量身定做设备。

Designed for the printing of cosmetic powder box, stationery ruler, flat pen, meter transparent plate and other flat products.

A variety of functions, such as integrated synchronous automatic feeding and feeding, feeding manipulator, product detection, ion wind dust removal, ultraviolet curing and fast / slow mechanical synchronous transmission, have greatly improved printing efficiency, and the printing speed can reach up to 3000 pcs/hr. as fast as possible

Through the electronic sensor to achieve "no printing ", too low air pressure alarm and other automatic monitoring functions.

All electrical components and control systems are imported from Germany and Japan to ensure stable printing quality.

According to the customer's special requirements for their own products, specially designed and customized equipment.

技术参数（Specifications)

印刷产品尺寸（Printed Dimension) 160(L)X160(W)X100(H)

最大印刷面积（Max printing Area） 110X90mm

最快印刷速度（Printing Capacity） 45PCS/min

UV灯功率（UV lamp power） 2.7Kw

总功率（T0tal Power） 10Kw

电力要求(Voltage) 380V 3Phase 50Hz

气压要求(Air Pressure) 3-5bar

重量（Weight） 1500KG

机器尺寸(Machine Size) 4950(L)X3150(W)X2350(H)mm
