详细介绍：

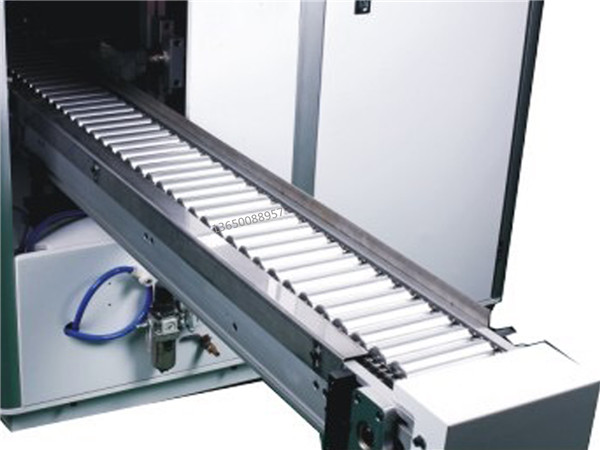

                          进料  Feed

       火焰与静电除尘  Flame and electrostatic dust removal

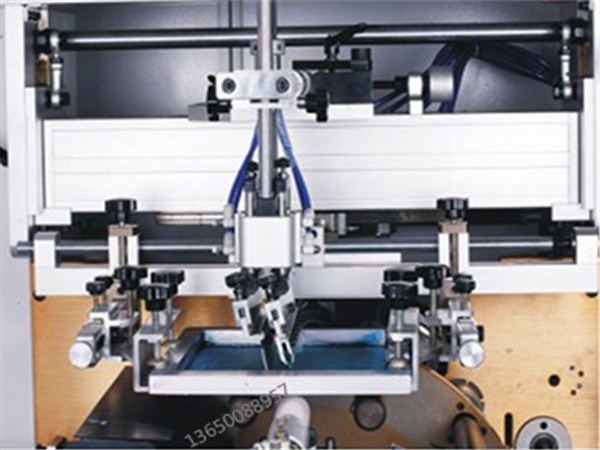

                印刷系统   Printing system

               LED或UV系统       LED or UV systems

产品简介

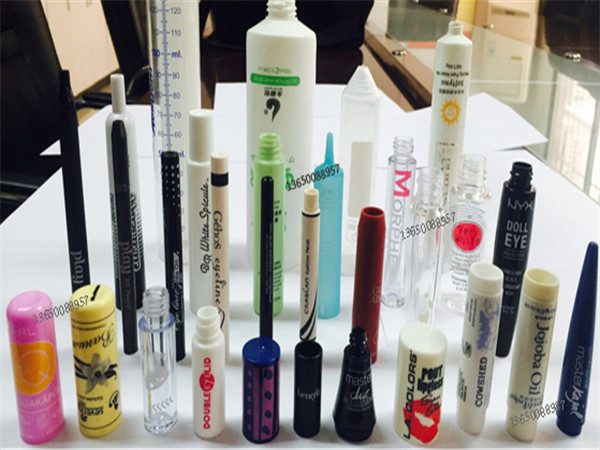

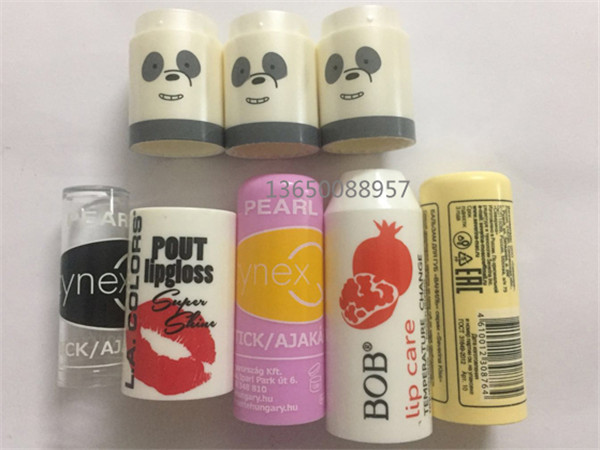

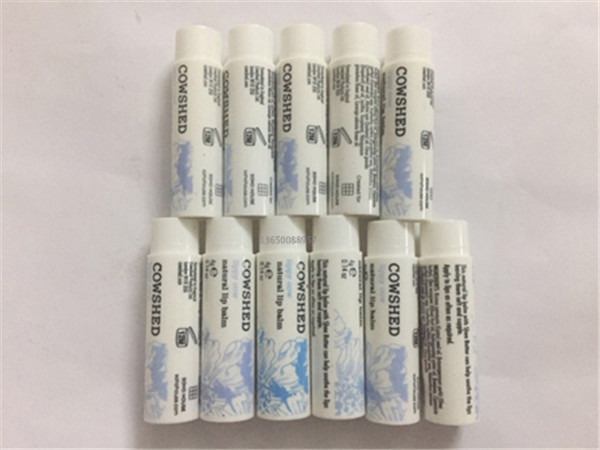

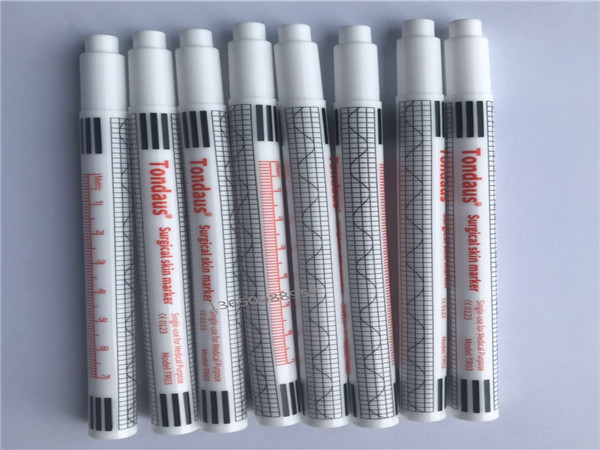

专为圆形承印物的双色印刷而设计,主要适用于笔杆、小瓶子等圆形制品，并可实现部分制品的多色印刷及精确套色。

主传动采用欧洲名牌传动器材，辅以高速精密间隙分割器，从而实现部分精确分度传动，使整机运行更加平稳可靠，印刷速度可高达2400-3600pcs/hr

整机控制采用国际名品PLC控制及设置简便快捷的触摸屏操作，轻易实现人机对话，操作更加得心应手。

油墨固化可采用电子式紫外线固化或红外线干燥，在保证性能稳定和节省电能的情况下，可获得更加优秀的固化效果。

具有离子风除尘、无件不印刷、气压过低报警、废料/错料等自动报警自动检测功能。

全自动上料系统与卸料机械手装置确保了印刷的连续与稳定，也尽可能避免了在印刷过程中造成承印物表面的刮伤，更加保障了作业员的安全操作。

根据客户要求，可选配以下配置

1、全自动上料器(可节省操作人员，实现全面自动化生产）

Product introduction

Designed specifically for the two-color printing of circular seals, mainly suitable for the pen stick, small bottles and other circular products, and can realize the multi-color printing and accurate color set of some products.

The main transmission adopts the European famous brand transmission equipment, supplemented by high speed precision gap splitter, so as to achieve the accurate degree of transmission, make the whole machine running more stable and reliable, printing speed can be as high as 2400-3600pcs/hr

Machine control using the international name PLC control and set up a simple and quick touch screen operation, easy to achieve human-computer dialogue, the operation is more handy.

Ink curing can be cured by electronic UV or infrared drying, in the case of ensuring stable performance and energy saving, can get a better curing effect.

With ion wind dust, no non printing, low pressure alarm, scrap / wrong material, such as automatic alarm automatic detection function.

Automatic feeding system and unloading manipulator device to ensure the continuity and stability of the printing, but also as far as possible to avoid the printing process caused the surface of the substrate scratch, more to protect the safety of the operator.

According to customer requirements, optional with the following configuration

Automatic feeder (saving operation personnel, to achieve full automation of production)

机器配置（machine configuration）

1、7寸触摸屏欧姆龙（日本）

2、PLC 欧姆龙（日本）或松下

3、转盘运转由德士分割器驱动（日本三共）

4、印刷机构全机械连动,加光电（德国）

5、左右滚珠丝杆(运行更平稳)（日本）

6、15轴管位座 ,紧密NSK轴承,进口硬轴组成（日本）

7、主传动由意大利摩多利减速机配电机，欧姆龙变频器控制（意利与日本）

8、滚珠丝杆与导轨均采用日本THK品牌（日本）

9、火焰（JenwaL）可以反馈煤气信号

10、气动元件. （日本SMC或亚德客）

11、产能：2400-3600pcs/hour

1.7-inch Touch-screen Omron (Japan)

2. PLC Omron (Japan) or Panasonic

3. The turntable is driven by German splitter (Japan)

4. All machinery connection of printing organization, plus photoelectric (Germany)

5. Left and right ball-screw screw (smoother operation) (Japan)

6.15 Shaft pipe seat, tight NSK bearing, imported hard shaft composition (Japan)

7. The main drive is equipped by Italian Morori reducer with motor and controlled by Omron converter (Italy and Japan)

8. Ball rod and guide rail adopt Japanese THK brand (Japan)

9. Flame (JenwaL) can feedback the gas signal

10. Pneumatic components. (SMC or Yardker)

11. Capacity: 2400-3600pcs / hour

技术参数（Specifications)

印刷产品尺寸（Printed Object Dimension)          Φ8mm-28mm L:20mm-230mm

电源（Power Supply)                         380V 3Phase 50HZ 4.5Kw

供气压力（Air pressure)                             6-8Bar

UV灯功率（UV lamp power）                       3.5Kw

速度（speed)                           2400-3600Pcs/hr

外形尺寸（dimension）                    2500(L)x1700(W)x1900 (H)mm

总功率（Total Power）                         4.6Kw

重量（Weight）                                    1400Kg
