详细介绍：

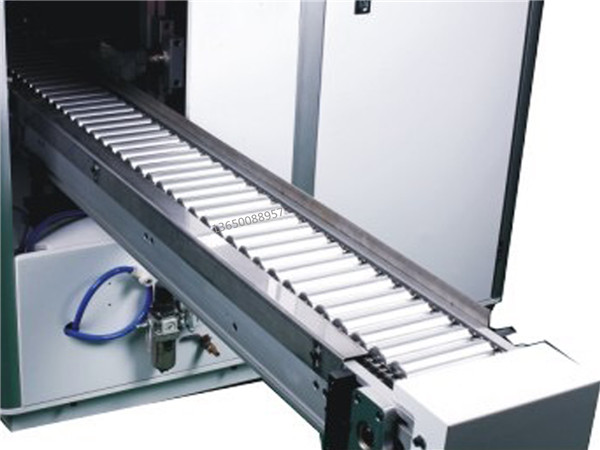

      进料        Feed

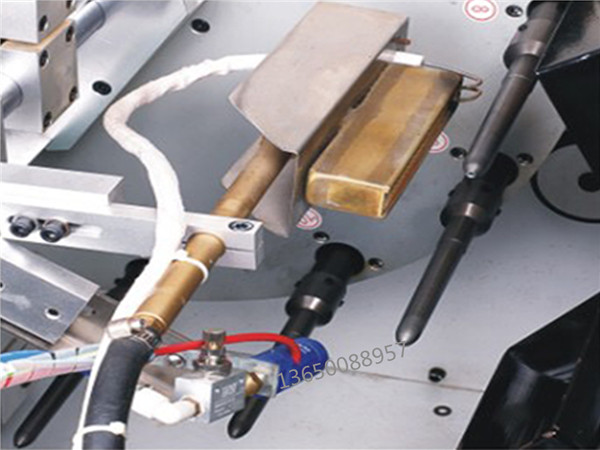

     火焰与静电除尘      Flame and electrostatic dust removal

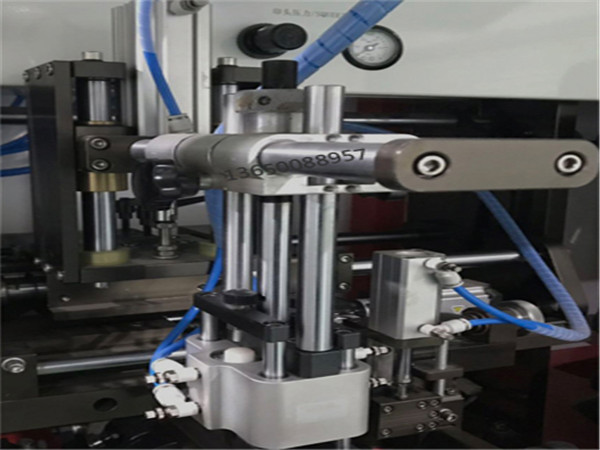

           印刷系统            Printing system

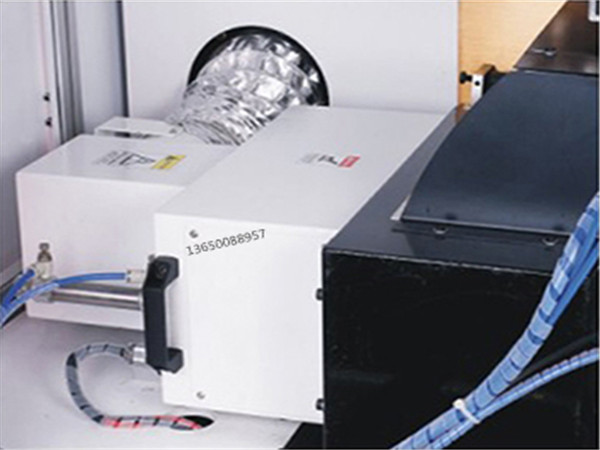

        LED或UV系统        LED or UV systems

一： 产品描述Product description：

      本机器能满足圆柱形、与其他异形容器的圆弧面印刷需求，对塑胶、玻璃、金属等材质的容器均有兼容性。本机通过可编程控制器（PLC）与高性能的触摸屏（Touch Screen）实现对整机工作的智能性操控。以先进的进口马达、变速装置及机械传动组成全新高速的传动系统，实现无极变速、同步传送、自动对位、无瓶不印等控制功能。

The machine can meet the cylindrical, with other special-shaped container arc printing requirements, plastic, glass, metal and other materials of containers are compatible. This machine realizes intelligent control of the whole machine through programmable controller (PLC) and high performance touch screen (Touch Screen) to realize the operation of the whole machine. The new high-speed transmission system is composed of advanced imported motor, transmission device and mechanical transmission, which can realize the control functions such as endless speed change, synchronous transmission, automatic alignment, no bottle and no printing.

二 主要功能 Main functions：

1 可供自动上料机上料

2 上料自动调头功能

3火焰表面处理系统

4 无级变速控制系统（变频器控制）

5 自动预先对位系统

6 无瓶不印刷系统（采用高性光电传感器， 透明瓶和黑色瓶都能可靠识别）

7 LED与UV紫外线固化系统（选择））

1. Automatic feeder feeding

2 Automatic feeding switch

3 Flame Surface Treatment System

4 Ungraded Variable Speed Control System (Inverter Control)

5 Automatic Pre-positioning System

6 Bottle-free printing system (reliable identification of transparent and black bottles using high performance photoelectric sensors)

7 LED and UV UV curing system (option))

三 主要配置Main configuration：

1 机器主电机:SITI（意大利）/减速机(台湾工字)

2 可编程控制器(PLC)：OMRON（日本欧姆龙）

3 触摸屏：欧姆龙或台湾威纶

4 光电开关：KEYENCE（日本基恩士）/SICK(德国)

5 按钮开关：IDEC(日本和泉)

6 接触器： SCHNEIDER（施奈德）/Fujifilm（日本富士）

7 继电器：OMRON（日本欧姆龙）

8 变频器：OMRON（日本欧姆龙）

9 紫外线固化系统：HONOVIA（美国汉诺威）

10 气动元件：SMC（日本）

1 main motor: SITI( Italy)/ reducer (Taiwan I-shaped)

2 Programmable Controller (PLC): OMRON (Omron, Japan)

3 Touch Screen: Omron or Wylon Taiwan

4 Light Switch: KEYENCE( Keenz, Japan)/ SICK( Germany)

5 button switch: IDEC( Japan and Spring)

6 Contactor: SCHNEIDER( Schneider)/ Fujifilm( Fuji, Japan)

7 Relay: OMRON( Omron, Japan)

8 Inverter: OMRON( Omron, Japan)

四 技术参数Technical parameters：

1 圆形印刷直径：ф10mm~ф75mm

2 圆形印刷高度：20mm~230mm

3 最快印刷速度：印刷圆形产品时，印刷最快速度50-65Pcs/分钟左右（不带位置要求）有位置要求与拍照系统，印刷最快速度40-50Pcs/分钟左右，实际产品为主

4 电力要求：/AC380V 3Phase 50Hz /60Hz

5 额定功率： 主机4.6KW

6气压要求：5～8bar

7机器尺寸：2500(L)*1700(W)*1900(H)mm

8 机械重量：约1500kg

1 Circular printing diameter :ф10mm~ф75mm

2 Two round printing heights :20 mm~230 mm

3 The fastest printing speed: when printing circular products, the fastest printing speed is about 50-65 Pcs/ minutes (without position requirements) with position requirements and photo system, the fastest printing speed is about 40-50 Pcs/ minutes, the actual product is the main

4 Power requirements :/ AC380V 3Phase 50Hz /60Hz:

5 rated power: host 4.6 KW

6 Pressure requirements :5~8 bar

7 Machine Size :2500(L)*1700(W)*1900(H) mm

8 Mechanical weight: about 1500 kg
