案例名称：175S双头笔杆全自动丝印机
更新时间：2020.05.29
出品单位：

更多产品图片：

详细介绍：

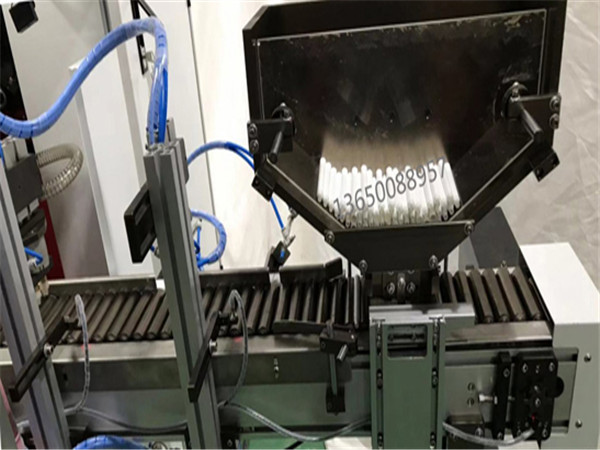

上料与双掉头 Feeding and Double Turning

双火焰处理 Double flame treatment

印刷系统 Printing system

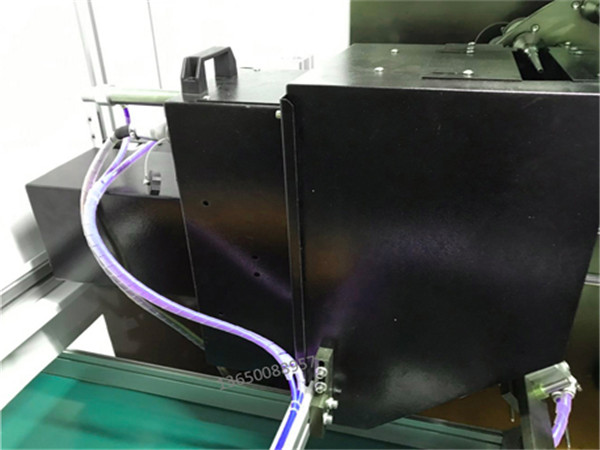

UV固化系统 UV curing system

一、产品简介Product Profile

1 专为圆形产品印刷而设计,主要适用于软管、瓶盖、离心管、膏霜罐的等圆形制品，并可实现部分制品的多色印刷及精确套色。

2 主传动采用欧洲名牌传动器材，辅以高速精密间隙分割器，实现部分精确分度传动，使整机运行平稳可靠，印刷速度高达3000-4800pcs/hr

3 整机控制采用国际名品PLC控制及设置简便快捷的触摸屏操作，轻易实现人机对话，操作更加得心应手。

4 油墨固化可采用电子式紫外线固化或红外线干燥，在保证性能稳定和节省电能的情况下，可获得更加优秀的固化效果。

5 具有离子风除尘、无件不印刷、气压过低报警、废料/错料等自动报警自动检测功能。

6 全自动上料系统与卸料机械手装置确保了印刷的连续与稳定，也尽可能避免了在印刷过程中造成承印物表面的刮伤，更加保障了作业员的安全操作。

Designed for circular product printing, it is mainly suitable for circular products such as hose, bottle cap, centrifuge tube, cream jar, etc.

2 The main drive adopts the European famous brand transmission equipment, with the high speed precision clearance splitter, realizes the partial accurate indexing transmission, causes the entire machine to run smoothly and reliably, the printing speed is up to 3000-4800 pcs/hr

3 The whole machine control adopts the international famous product PLC control and sets the simple and quick touch screen operation, realizes the man-machine dialogue easily, the operation is more handy.

4 The ink curing can be made by electronic ultraviolet curing or infrared drying, which can obtain better curing effect under the condition of stable performance and saving electric energy.

5 It has the function of automatic alarm and automatic detection, such as ion air dust removal, printing without parts, low air pressure alarm, waste / wrong material etc.

6 The automatic feeding system and the unloading manipulator ensure the continuity and stability of the printing, avoid the scratch of the surface of the substrate in the printing process, and ensure the safe operation of the operator.

二、根据客户要求，可选配以下配置Depending on customer requirements, the following configurations are available

1、全自动上料器(可节省操作人员，实现全面自动化生产）

2、伺服+光标定位系统（可实现再次精确套色完成胶印、烫印）

3、机械定位装置（可实现多色套印）

4、丝印烫印相互转换功能

1. automatic feeder (can save operators, achieve full automation production)

2. Servo Cursor Positioning System (Can achieve accurate color set to complete offset printing, hot stamping)

3. mechanical positioning device (multi-color overprint)

4. silk-printing and stamping conversion function

三、技术参数（Specifications)

印刷尺寸范围（Printed Object Dimension) Φ：10mm-75mm L:20mm-230mm

电源要求（Power Supply) 380V 3Phase 50HZ 4.5Kw

气源要求(Air Supply) 6-8Bar

UV灯功率（UV lamp power） 2.4kw

速度（Speed) 3000-4800Pcs/hr

外形尺寸（dimension） L2500xW1700xH1900 mm

总功率（T0tal Power） 4.5Kw

重量（Weight） 1200Kg
